Synq SMX-1

Submitted by jannickv  Flag on 14-03-2008 @ 22:02
Last edited by Lead  Flag on 02-06-2018
Synq

Model : SMX-1

Brand : Synq
Brand website :  synq-audio.com

Category : Mixer



Vote :

2 votes for Favourite Mixer

 Show Booths

23 times used in 23 DJ Booths

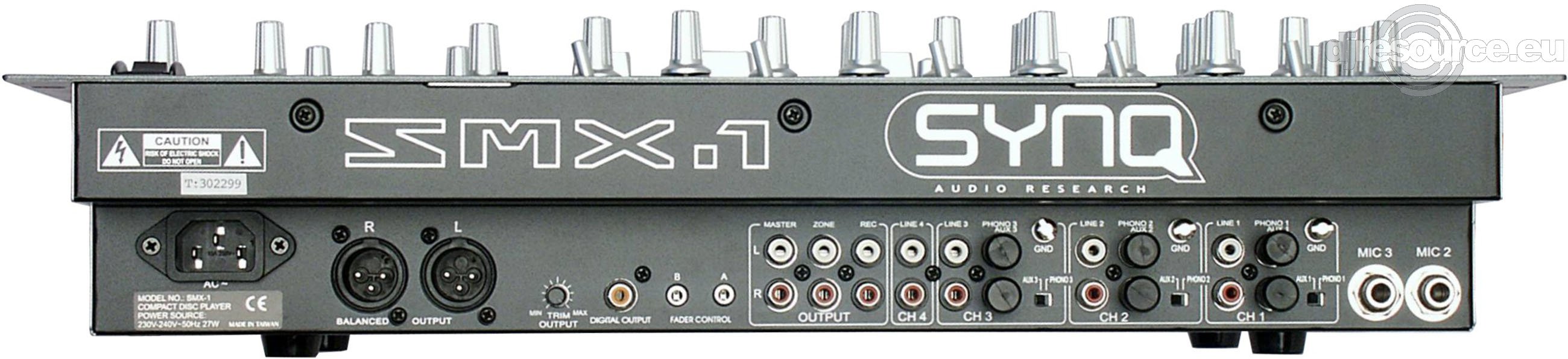

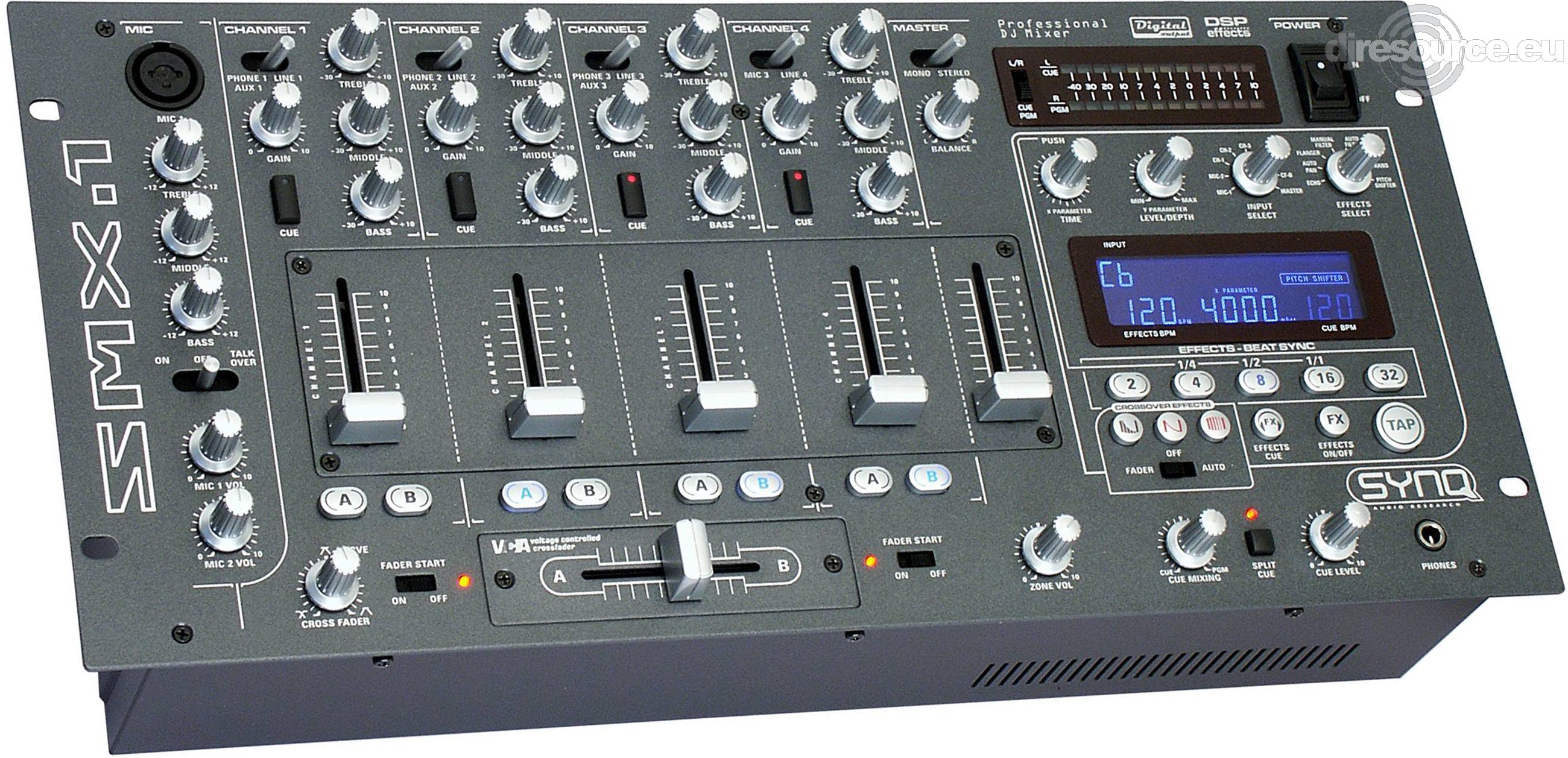

Synq SMX-1 Mixer

Features

feature 6 Channel Stereo audio mixer
feature 13 inputs
feature 2 Master outputs (XLR/cinch)
feature 3-band tone controls with kill -30dB on all channels

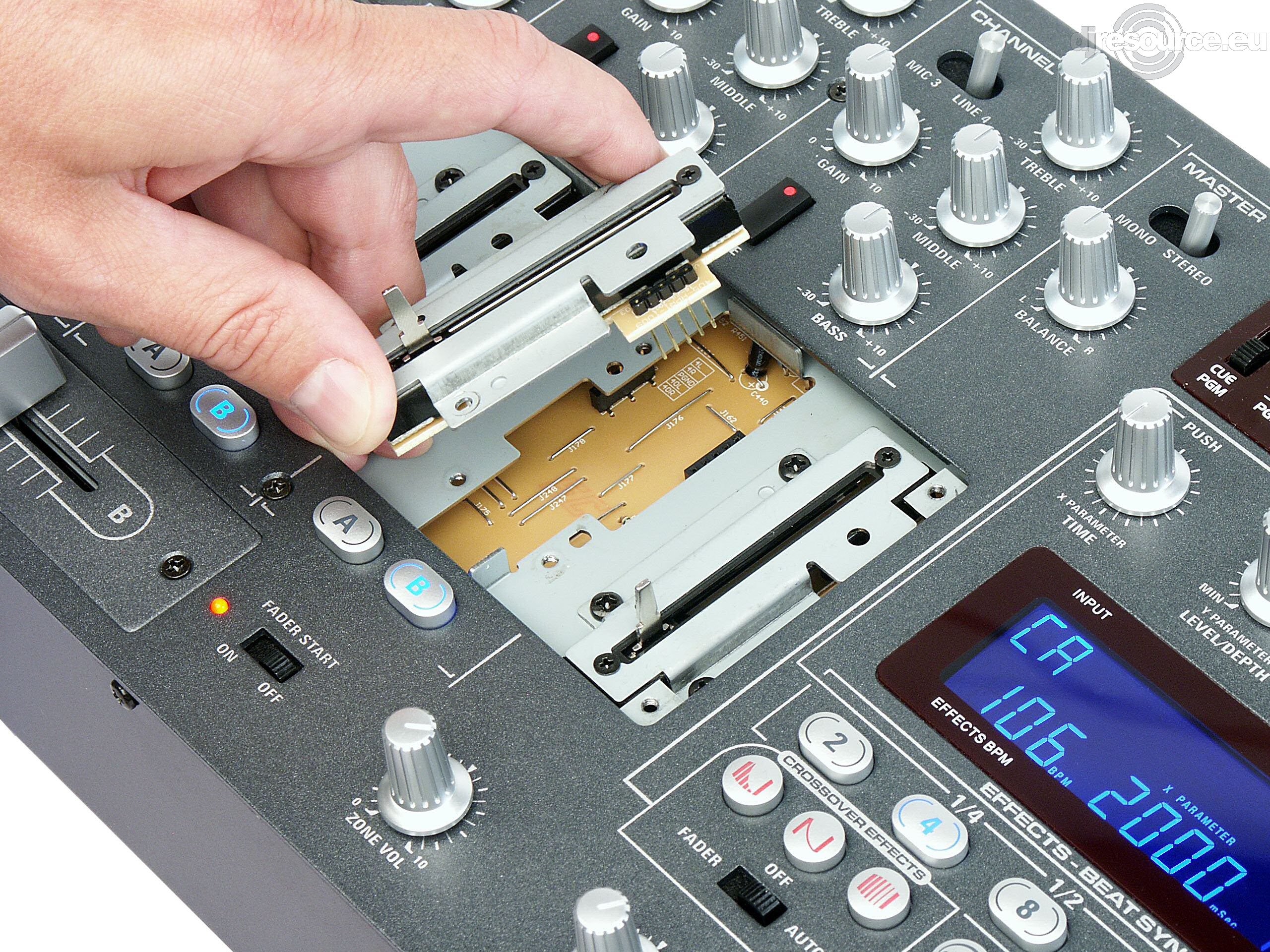

feature Special, user replaceable, high quality faders
feature User replaceable VCA controlled cross fader
feature Easy A/B channel selection for cross fader
feature Cross fader start control for compatible CD-players
feature 3 Beat synchronized Cross fader mixing effects
feature Adjustable Cross fader curve (soft sharp cutoff)
feature Full automatic beat counters
feature 8 Beat synchronized digital effects:
 - Echo
 - Autopan
 - Flanger
 - Manual filter
 - Auto filter
 - Reverb
 - Trans
 - Pitch Shifter
featurePreprogrammed effect presets
featureLCD display with back-light with clear information for both effects and beat counters
featureEffect Cue function
featureCoaxial digital S/PDIF output for recording
featureMicrophone talk-over function
featureHigh power Phones output with 'split cue' and 'cue/pgm mixing' possibility
featureSelectable (cue/pgm) LED VU-meter with peak hold.
featureVery compact design. (482 x 221 x 87.5mm (19' / 5U)

Specifications

featureInput/output impedance & sensitivity (EQ flat, max. gain, level meter = 0d
-Line input: 340mV @ 20kΩ (max = +4dBV)
-Aux input: 340mV @ 47kΩ (max = +4dBV)
-Phono input: 3,4mV @ 47kΩ (max = -40dBV)
-Mic inputs: 1,7mV @ 2,2kΩ (max = -42dBV)
-Record output: 775mV @ 1kΩ
-Master unbalanced: 1,55V @ 100Ω
-Master balanced: 3,00V @ 200Ω
-Zone output: 1,55V @ 100Ω
-Headphones: 3,00V @ 33Ω
-Digital output: 1,00V @ 75Ω

featureMaximum output (EQ flat, max. gain, FX off, THD=1%, load is 100kΩ )
-Master: More than +18dBV (8,0V)
-Zone: More than +18dBV (8,0V)
-Phones: More than + 9,5dBV (3V) @ 32Ω

featureFrequency response (EQ flat, max. gain, level meter = 0dB, load is 100kΩ )
-Line + aux: 25 – 20.000Hz +/-1dB
-Phono: 25 – 20.000Hz +1/-1.5dB (RIAA)
-Mic : 25 - 20.000Hz +1/-1.5dB

featureTHD + Noise (EQ flat, max. gain, level meter = 0dB, load is 100kΩ )
-Line + aux: less than 0,05% (25 – 20.000Hz)

featureChannel Crosstalk (EQ flat, max. gain, Master = 0dBV)
-More than 75dB @ 1kHz

featureTone controls:
-Mic: -12dB / +12dB @ 70Hz – 1kHz – 13kHz.
-Input channels: -30dB / +10dB @ 70Hz – 1kHz – 13kHz.

General specs

feature Power supply: 230V~ 50Hz.
feature Power consumption: 34Watts
feature Dimensions: 482 x 221 x 87.5mm (WxDxH)
feature Weight : 5.25kg.
