The Electribe series of Dance Tools defined a new standard, combining unique sound generation, pattern based programming, and intuitive knob-based interfaces. Thousands of forward-thinking musicians, DJs and producers continue to use them to create exciting and groundbreaking music.
Up to 256 patterns can be created and stored to the internal memory. You can combine patterns, add mute data and knob movements to create up to 64 songs. To get you started, a wide assortment of patterns covering house, hip-hop, R&B, electronica, drum’n’bass, techno, trance and more come preloaded – 196 in the ELECTRIBE·MX. Using the last step function, you can easily adjust to any odd meter. Favorite patterns can be assigned to Pattern Sets for instant access. Data can be quickly saved and loaded via SmartMediaTM.

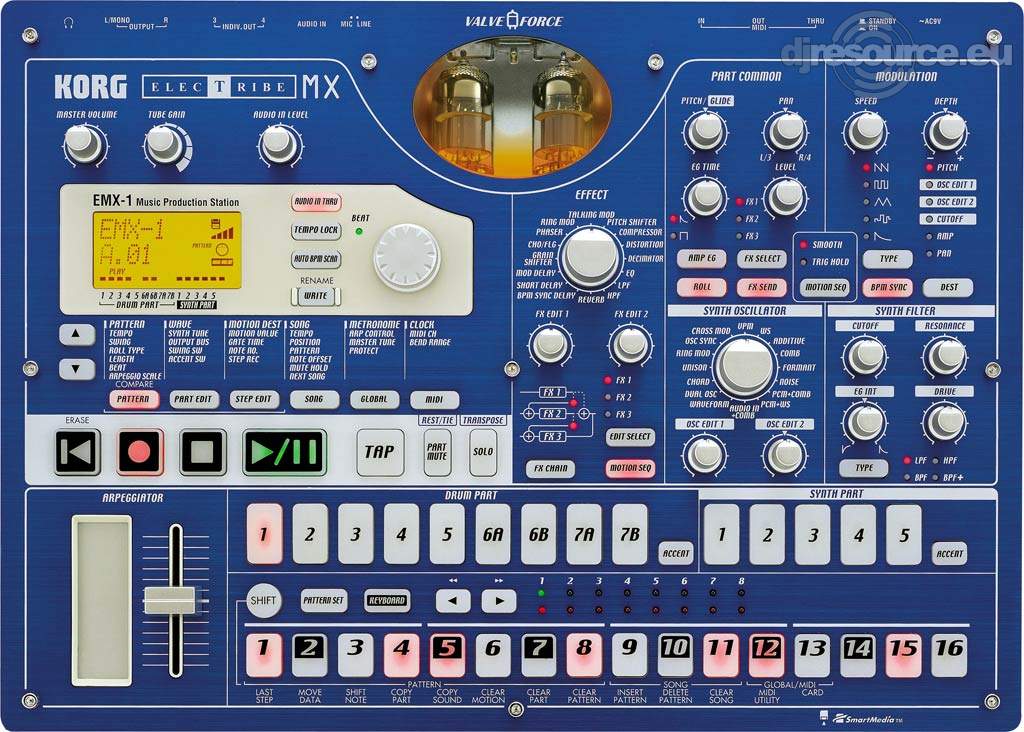

Audio inputs allow you to process external signals through the on-board filter and effects, and an extra pair of assignable outputs has been added as well. The front panel knobs and switches control all the most important sound parameters, allowing you to modify the sound in realtime as you perform, and giving you a hands-on feel like that of an analog synthesizer.
L/Mono, R (phone jack: mono x 2)
Individual 3, 4 (phone jack: mono x 2)
Headphone (phone jack: stereo)
Audio In (phone jack: mono)
Sound Generation Method: Analog Modeling + PCM
Oscillator type: 16 (Synth Part)
Filter type: 4 (Synth Part)
Drive Circulation : Synth Part
Modulation Function : Assignable, Tempo Synchronization
Number of Waveforms : 207 drum PCM waveforms, 76 Synth PCM waveforms (16bit, 44.1kHz)
Number of Parts: 16 ttl; 5 synth parts, 9 drum parts, 1 synthesizer accent part, 1 drum accent part
Memory : 256 patterns (192 preload), 64 songs (3 preload)
Effects : 16 types x 3 (Chain)
- Pattern: Maximum 128 steps by part, Maximum 24 motion sequence by pattern
- Song: Maximum 256 patterns
Arpeggiator: Ribbon + Slider, Scale
MIDI: In, Out, Thru
External Memory : SmartMedia™ (4–128 MB, 3V)
Vacuum tube: 12AX x 2
Power Consumption: 24W
Power Supply AC IN (AC9V)
Dimensions: 358(W) x 256(D) x 62(H) mm
Weight: 3.1 kg
