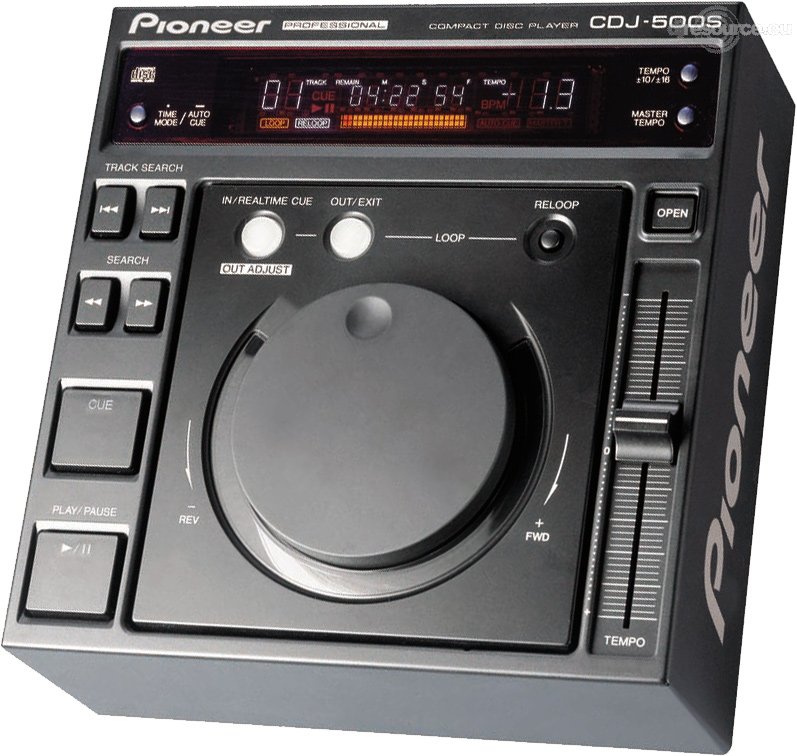

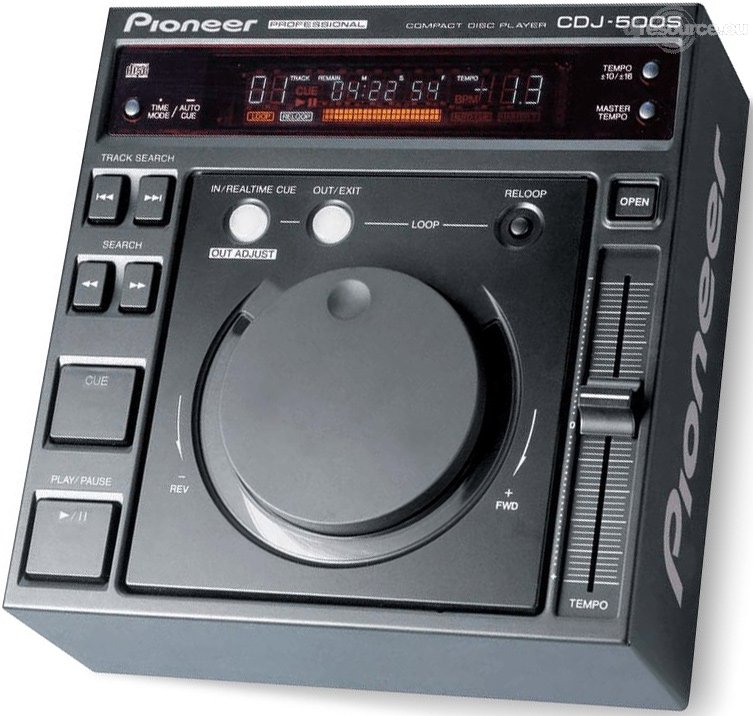

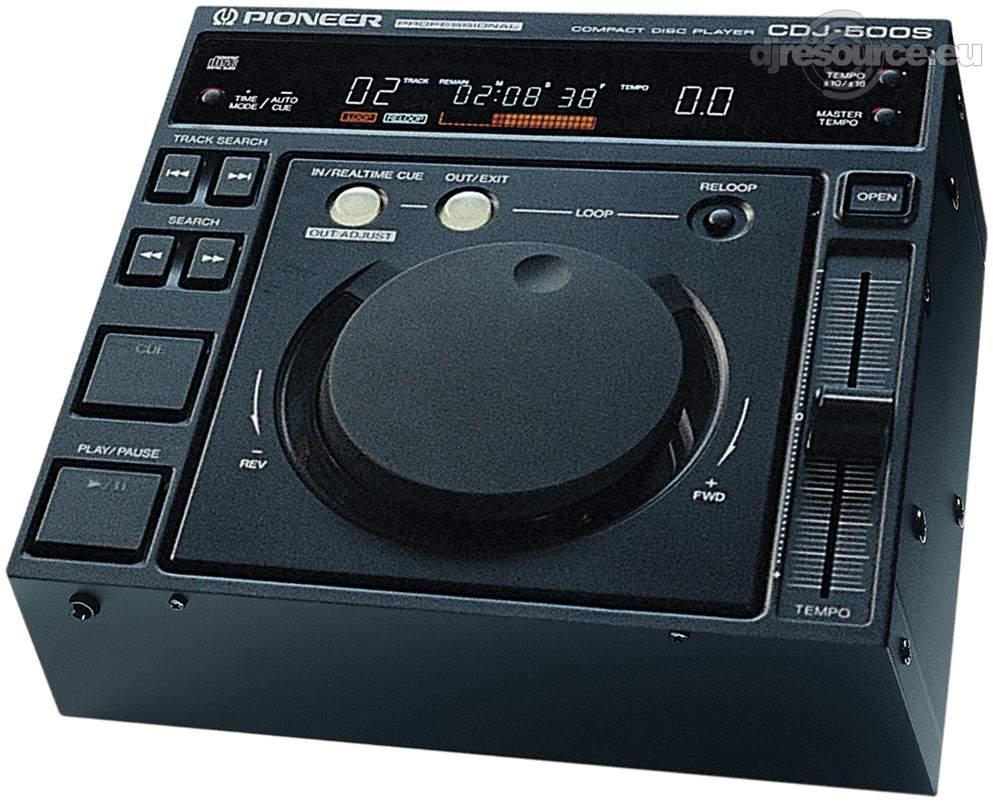

This is one of the DJResource DJ Topics © 2019 Pioneer DJ CDJ-500S Downloads
The revolutionary oil-dampened floating suspension prevents sound skipping,
even when the unit is subjected to impact during use or vibrations from high
music volume. The case also incorporates a specially insulated disc compartment
to withstand the explosive sound pressure of club environments.
's compact design means that it will fit in any DJ booth, radio
or recording studio, no matter how small the available space is. All controls
are big and well laid out for easy tactile operation.
The CDJ-500S can be mounted at any angle up to 45o towards the DJ, for maximum
flexibility. What's more, putting two units together gives you a standard 19"
width; so they will fit in standard industry rack. There's also an optional
installation bracket available, so the CDJ-500S will fit in the most difficult
Sensitive Jog Dial
The extra large, quick-response Jog Dial makes it very easy searching the music
frame-by-frame and selecting precise cue points. The Jog Dial is also used to
synchronize beats, once having been matched, and to correct the Loop-Out point
in real-time. The degree of sensitivity gives you closer to vinyl (turntable)
CD Player for DJ's
Type of Discs
12 & 8cm
4Hz ~ 20kHz
0.004 % (JEITA)
Signal to Noise Ratio line
98 dB or less
AC 220-240V, 50/60Hz
217 x 227 x 98 mm ( WxDxH )
Operating Manual, Power Cord, Control cord
Flat Top Design
DJs used to working with vinyl turntables will have no problem switching to
the top-mounted controls of the CDJ-500S.
There is no time lag when you hit the play (<0.01 sec.). The CDJ-500S starts
the music instantly so you can match the rhythm with pinpoint accuracy.
A light bar graphically shows the track's elapsed or remaining playing time,
just like a tone arm moving across a record.
A DJ-standard long-stroke slide controls pitch and speed within a range of +10%.
The digital display gives a readout in 0.1% increments. The response time of
the Tempo Control has also been improved dramatically.
The headphone output, with volume control on the rear panel, allows you to monitor
the sound at any time and in any situation.
An industry first! The Master Tempo control locks in the music's pitch even
when the tempo is changed. You can speed up or slow down the beat without any
change in vocal or instrumental tone. A new way of mixing to the DJ world!
Any phrase of the CD can be sampled and seamlessly looped as many times as desired.
When the loop is released, the song continues without any pause. The loop start
is memorized so you can return any time.
Setting the start point of a desired phrase on the CD can now be done in real-time
during live performance. The end point is also set in real-time: when the loop
is released, the music continues without any pause.
Pressing the Loop-Out Adjust button during a loop brings you into the Loop-Out
correction mode. In this mode, you can fine-tune the Loop-Out point in real-time
by spinning the Jog Dial. The correct Out point is then confirmed by pushing
the Loop Out button.
Up to 10 minutes
of music can be seamlessly looped as many times as you want.
Looping half beats and phrases s short as one frame is possible
Even after releasing a loop, a push of the Reloop button will return you to
the loop start point.
This content from our DJ Topic : Pioneer CDJ-500s
What do you think about Pioneer DJ CDJ-500S ??
DJResource / Pioneer DJ © 2019
There are 5 Comments
czure wrote on 09-08-2004 @ 13:11
The CDJ 500S is still by far the best CDJ so far.
It takes a beating and still holds its owm. for an affordable 900.00-1200.00 it is well worth it!
bkdj wrote on 14-08-2005 @ 21:29
Where does the disc go??
the-melody wrote on 20-07-2006 @ 07:27
below the jog i think.
rbluerreload wrote on 24-03-2009 @ 10:45
I love this cdj's they're very reliable and I love the size, I got two of them second hand some months ago and I'm very happy with them and the priced I payed
djspob wrote on 07-09-2010 @ 23:16
ohh my first mix i did wose on the CDJ 500s & CDJ 500II
small, cheap, tipical
