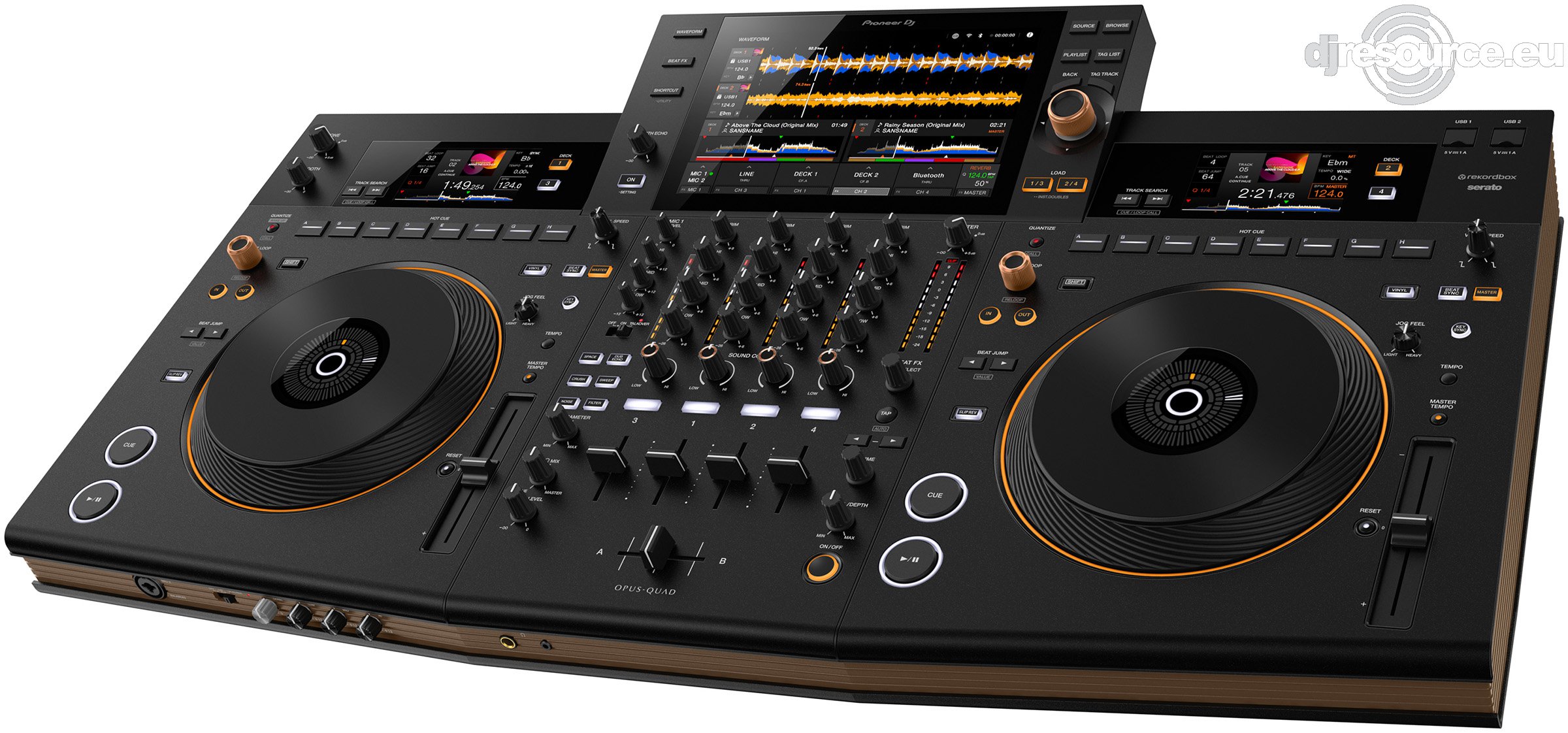

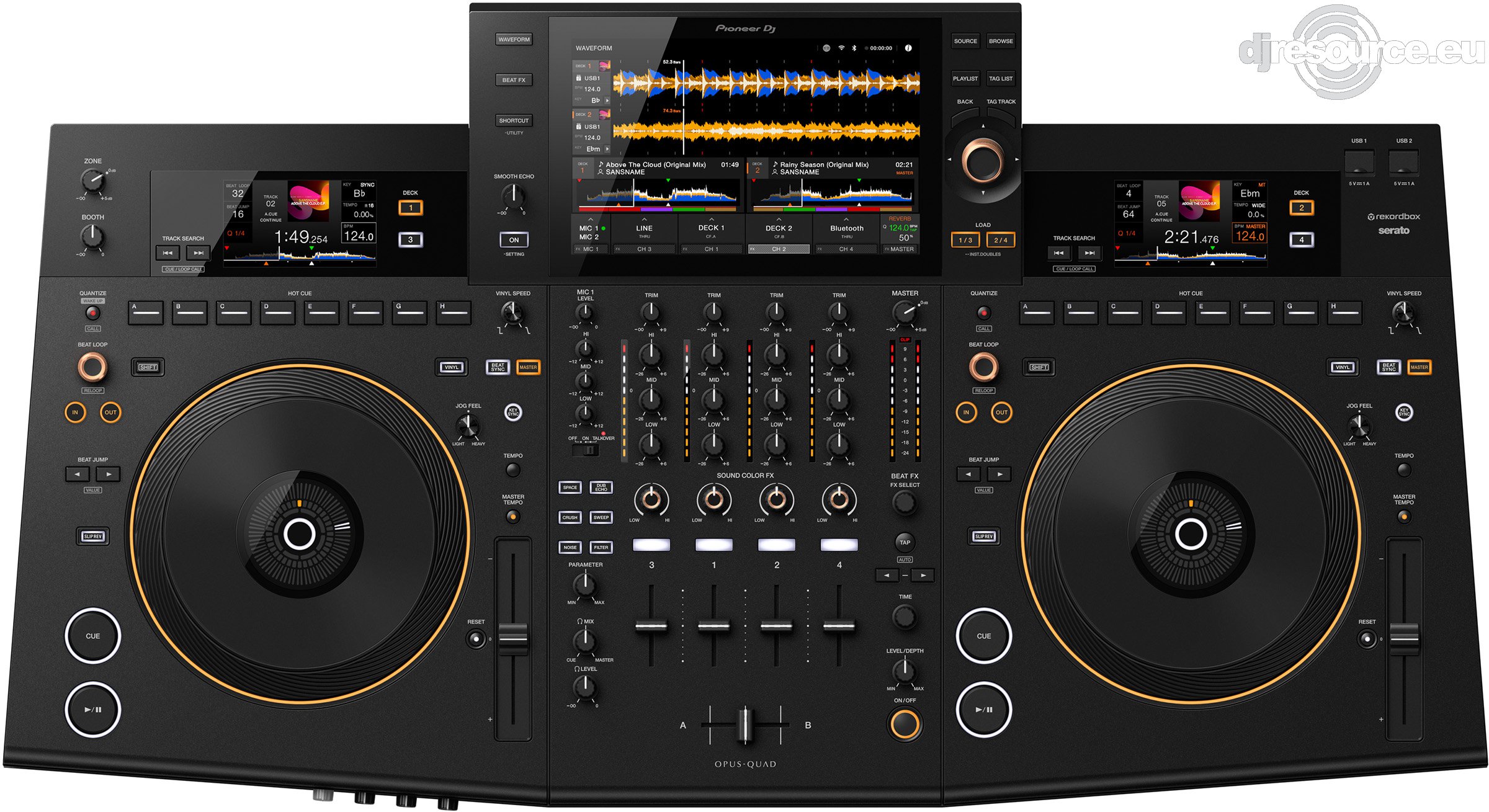

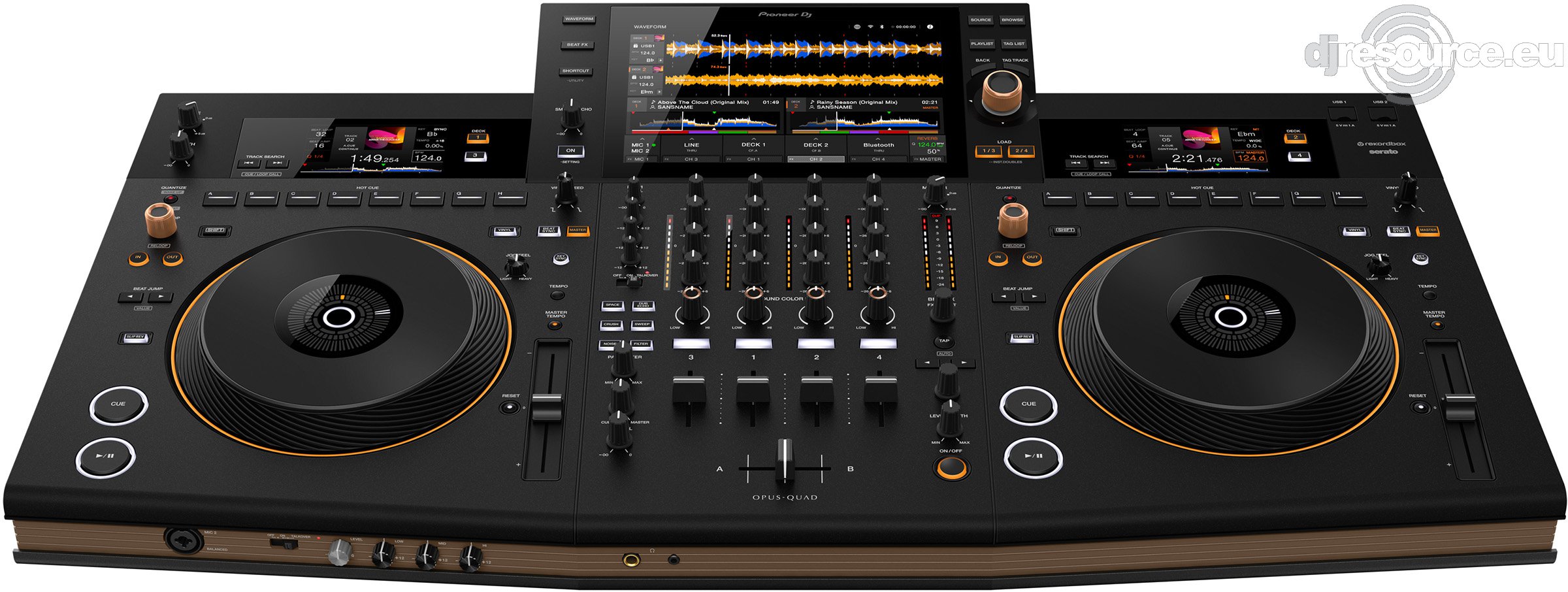

Today Pioneer DJ announces the Opus Quad, a new 4 channel All-in-One which is added to our line-up (it is not replacing any current model).
The Opus quad is a deck with its own identity in a new unique design, multiple displays and full-sized jogs.

2 Channels of the Opus Quad can be used solely for playing music from USB, the other 2 channels can do this aswell and the latter 2 channels can be switched to Bluetooth, Line or Phono inputs. Other than the 10.1”multitouch main screen, each deck also has its own color LCD display that shows the track info of that deck. The main screen is the place where you will find the controls for things where you might suspect hardware buttons like: Channel input select, assign channel for the BPM effects, Touch Preview when browsing and X-Pad BPM FX control.

Update your Rekordbox to the latest version. One thing to take into account is that the Opus Quad uses a different database system which makes it so that you need to prepare your devices for use on an Opus Quad. To create a device that works on both the Opus as the current products you need to set a checkbox in Rekordbox on your computer (Preferences > DJ-System > Device-Tab > Make sure the first checkbox is set (Device Library Plus’, the second checkbox should be turned on by default (for the other products). You can export your devices again to get all new data on there. You can also use Rekordbox to convert your existing devices (reformatting is recommended).

Features

• 4 Channel All in One
• 10.1'' Touch Screen Main Color LCD (1280x800)
• 4.2'' Deck Display per deck
• WiFi to setup ProDJ Link to computer
• Dual/Quad Waveform Display
• Needle Search on Touch Screen
• Rekordbox Devices supported
• Record directly to USB, even while playing tracks from it
• MIDI Control
• Tag List
• 3 USB Inputs for Rekordbox Devices (backside has higher power)

Mixer

• 4+2 Channel Mixer
• Trim and 3 Band EQ per channel
• 6 Sound Color FX : Space, Crush, Noise, Dub Echo, Sweep, Filter
• XY Sound Color FX Parameter control
• 14 Beat FX : Delay, Echo, PingPong, Spiral, Reverb, Trans, Filter, Flanger, Phaser, Pitch, Slip Roll, Roll, Vinyl Brake, Helix
• Smooth Echo (On Master, when fader closes/deck stops)
• Beat Fx Quantize
• PFL per Channel
• 2 Band EQ on Mic
• Mic Advanced Talk Over
• Bluetooth Input (CH 3/4)
• Zone XLR Output

Deck

• 206mm Full Sized Pressure Sensitive Jogwheel
• Illuminated Jog rim
• 8 Hot Cue/Loops
• Jog Tension Adjust
• Key Sync
• Cue/Loop Memory
• Touch/Release time adjust
• Reverse Playback
• Vinyl Mode
• Quantize
• Slip Mode
• Beat Sync
• Cue Sampler
• Instant Doubles
• Loop In/Realtime Cue, Loop Out, Loop Out Adjust and Reloop/Exit
• Loop control by Endless Rotary Encoder
• Master Tempo, locks in the music's pitch even when the tempo changes
• Auto Cue, cues at the first detection of audio in the track
• Pitch Range : ±6, 10, 16, 'Wide' 100%
• Pitch Accuracy : 6% scale 0.02%, 10, 16% scale 0.05%, 100% scale 0.5%

Specifications

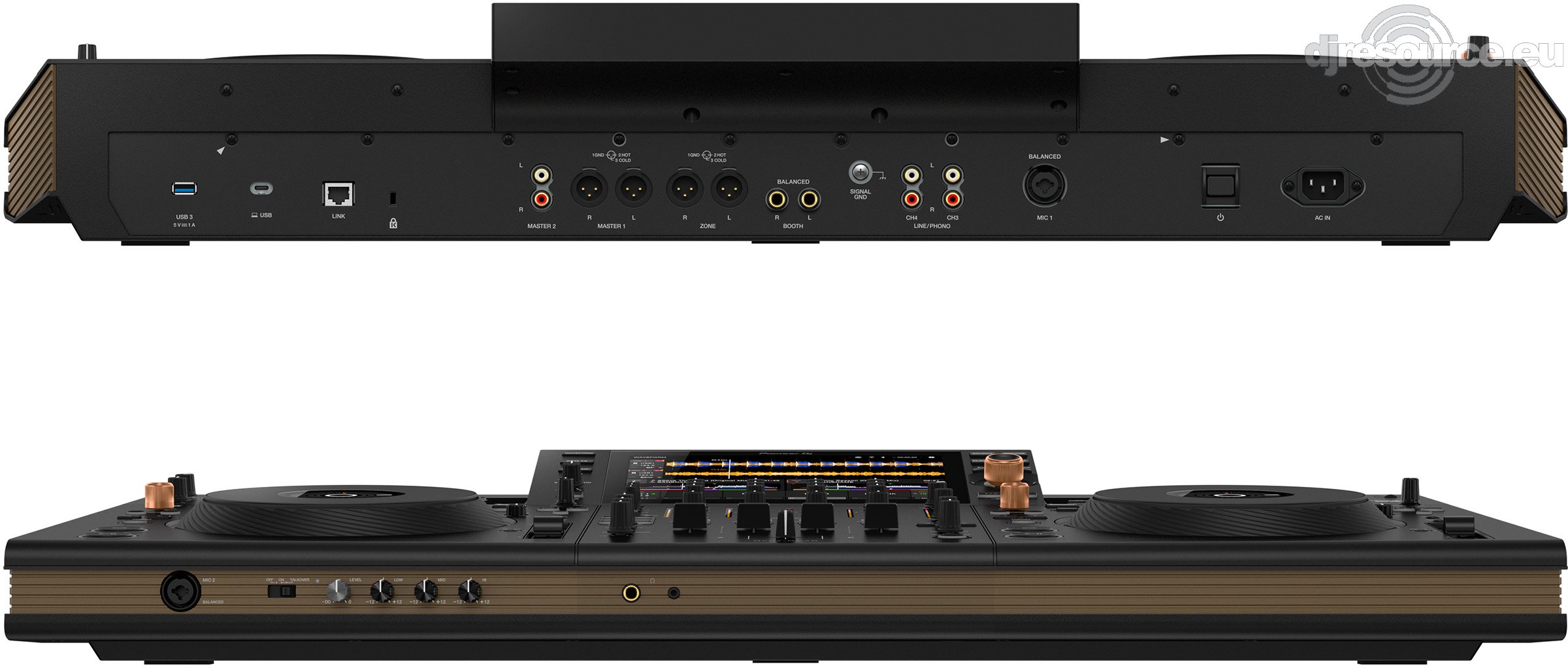

• Inputs : 2 Phono/Line (RCA), 2 Mic(XLR Jack Combo)
• Output : Master(RCA, XLR), Booth(Jack), Zone(XLR), Headphone(Jack, mini-Jack)
• Connections : 2 USB-A, USB-B, 3 Ethernet(ProDJ Link)
• File Type : MP3, AAC, AIFF, WAV16bit, WAV24bit
• USB Formats : FAT, FAT32, HFS+, ExFAT
• DA/AD Converters : 24/32bit


• Frequency Response : 20Hz - 20kHz
• Distortion (THD) : 0.003 % (JEITA)
• Signal to Noise Ratio : 114 dB
• Power Supply : 220-240 VAC, 50/60Hz
• Power Consumption: 60W
• Dimensions (WxDxH) : 925 x 500 x 142mm
• Weight : 13.2 kg
