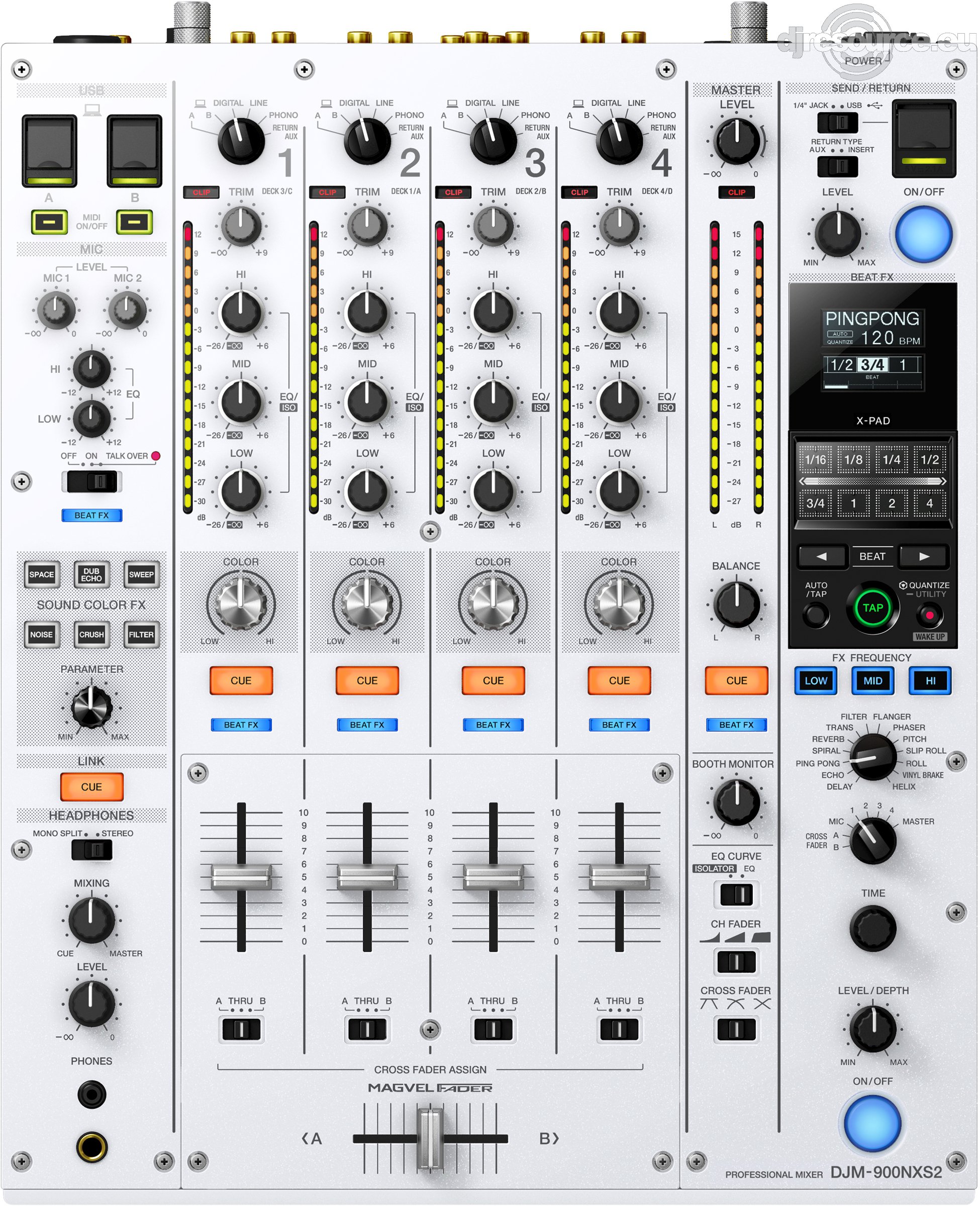

Pioneer DJM-900NXS2-W LIMITED Mixer

The Pioneer DJM-900NXS2-W is a Limited Edition White version of the DJM-900NXS2 and it has identical features.

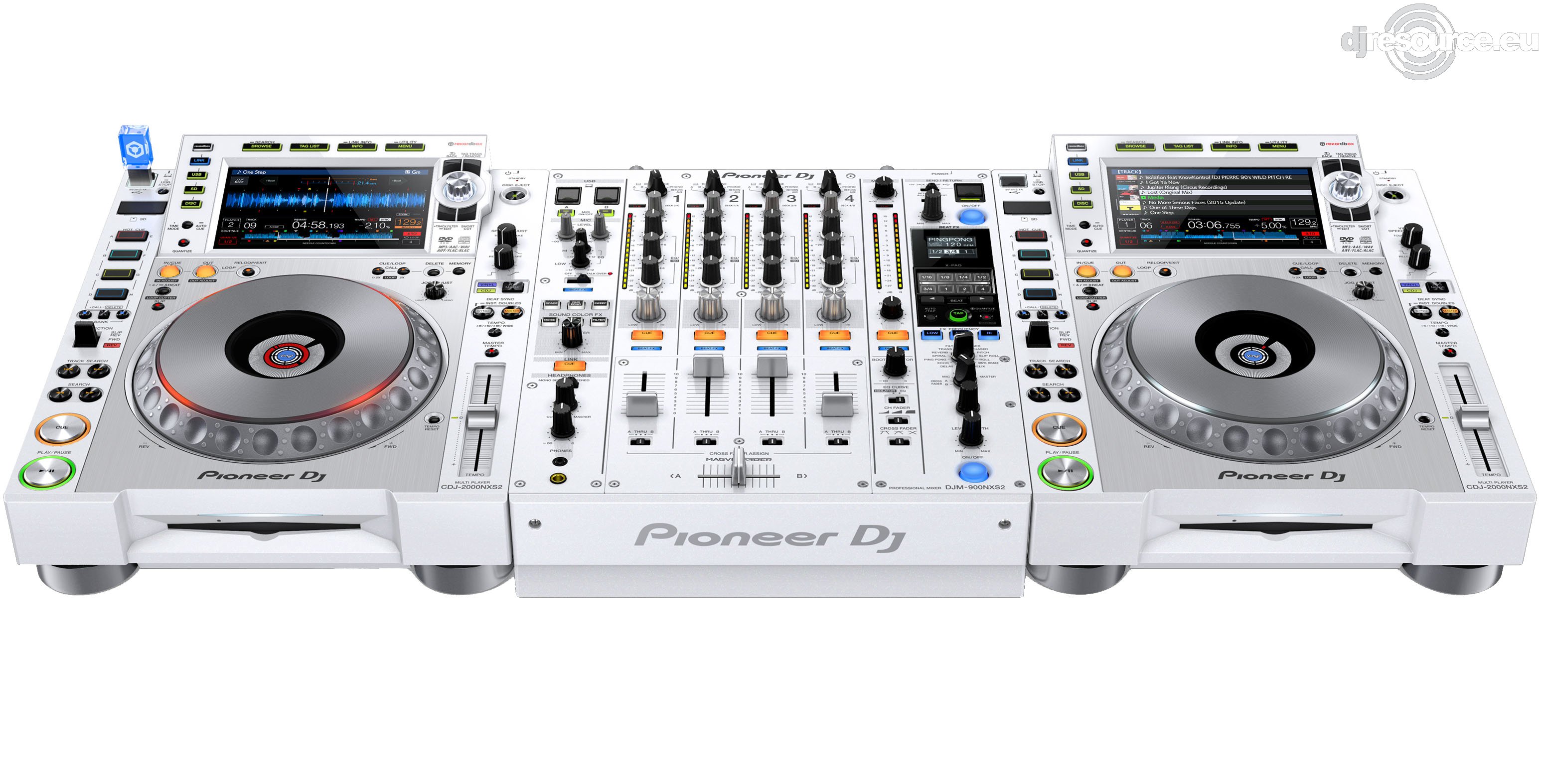

It has identical specifictions as the main model and was only sold as a set consisting of 2 Pioneer CDJ-2000NXS2-W and a Pioneer DJM-900NXS2-W.

Main Model : Pioneer DJM-900NXS2

The Limited White edition is made in a run of only 600 sets (1.200 CDJs), 500 in Europe and 100 in the USA.


4+2 Channel Mixer
OLED Display
6 Sound Color FX manual filters : Space, Dub Echo, Sweep, Noise, Crush, Filter
Larger Color FX knobs
13 Beat FX, beat synced : Delay, Echo, Ping Pong, Spiral, Reverb, Trans, Filter, Flanger, Phaser, Pitch, Slip Roll, Roll, Vinyl brake, Helix(Freeze)
Beat FX Indicator on each channel
Beat FX Frequency Selector/bypass
Improved EQ and Gain curves
Double sized X-Pad for Effect Parameter control
X-Pad activates effect when used
Inter App support for Effect Apps on tablets
Send/Return selectable as Aux or Insert
Magval Crossfader, each channel assignable, can be disabled
Double USB-B Inputs on Top
Faders with steel rails and sideways mounted circuit
P-Lock Fader Caps prevent loosing fader caps
Quantized Beat FX
ProDJ Link Support
DVS Supported
Beat Indicator Display
Send/Return assignable to each Channel, Crossfader, Mic or Master
Return possible on every channel
2 Microphone with Trim, Advanced Talkover and shared 2 Band EQ
Beat FX Time control, Beat skip buttons and variable control, blocks in display lights up at synced times (¼, ½, 1, 2 etc)
BPM Counter Display
Auto BPM/Tap
3 step Cross Fader Curve adjust
3 step Channel Fader Curve adjust
Per Channel : PFL Cue, 3 Band EQ, Trim, Faderstart (ProDJ Link)
Equalizer Selectable : -26dB or -∞ Isolators
PFL Mono Split
15 segments VU Meter
Master Volume Rotary
Master Balance control
Master Mono/Stereo Switch
Booth Monitor Output
Record Output

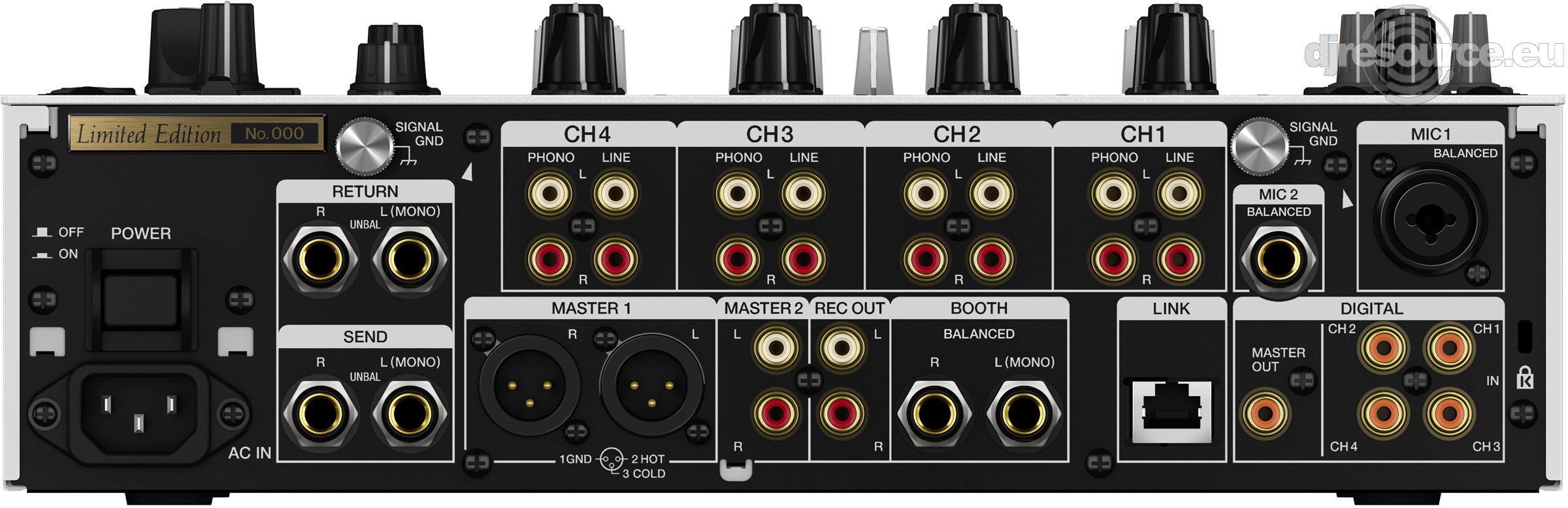

Inputs : 4 Phono(RCA), 4 Line(RCA), 4 Digital(RCA), 2 Mic(XLR Jack Combo, Jack)
Outputs : Master (XLR, RCA, Digital RCA), Record(RCA), Booth(Jack), Headphones(Jack, Mini Jack)
Connections : 2 USB-A, USB-B, Send/Return(Jack), ProDJ Link(USB, Ethernet), MIDI(DIN), Bigger Ground Terminals
EQ Low : -26 +6dB @70Hz
EQ Mid : -26 +6dB @ 1kHz
EQ High : -26 +6dB @13kHz
Mic EQ Low : -12 +12dB @ 100Hz
Mic EQ High : -12 +12dB @ 10kHz

Mixing Processor : 64bit floating point LME49720
Processing : 96kHz 24bit
DA Converter : 32bit AK439
AD Converter : 24 bit
61 Assignable MIDI channels and clock
Frequency Response : 20Hz - 40kHz
Signal to Noise : 105dB
Distortion(THD) : 0.005%
Crosstalk : 82dB
Power Supply : 220-240VAC @ 50/60Hz
New Power Circuit
Dimensions (WxDxH) : 333 x 414.2 x 108mm
Weight : 8kg
