Model : VMS4.1

Brand : American Audio
Brand website :  www.americandj.eu

Category : MIDI Controllers

This product has been discontinued

Nobody votes this as Favourite yet.

Equipment not yet in use by any of our members

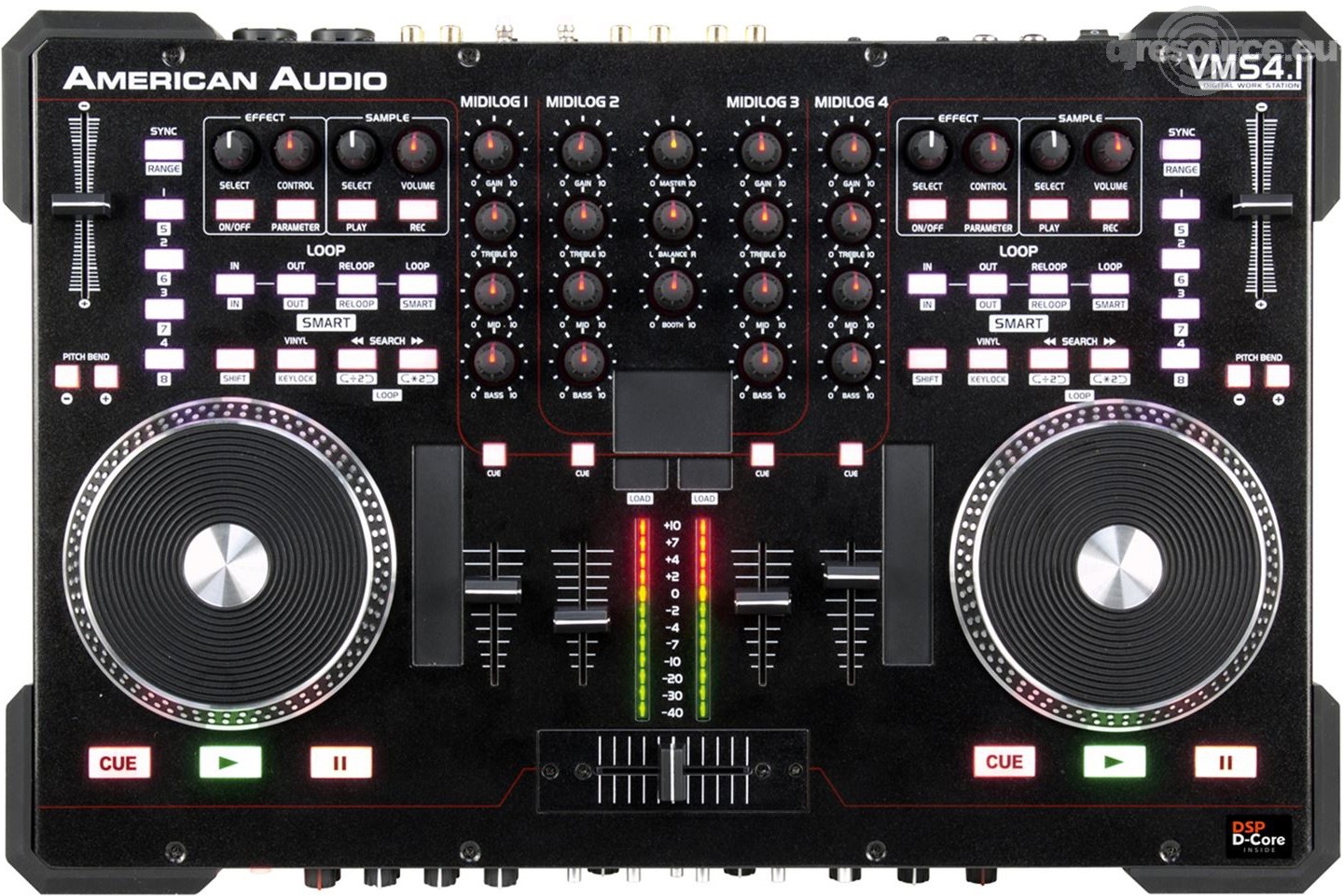

American Audio VMS4.1 MIDI Controllers

he American Audio VMS4.1 is designed for performance minded DJs looking for a solid, all-in-one Midi Controller to play MP3 racks from their laptop, plus have the option to add CD Players and turntables to the mix.   Some general features include 4 USB / Analog selectable Midilog (Midi & Analog) channels.  2 phone lines selectable analog channels. It also has gain/treble/mid/bass EQ on all MIDILOGTM Channels.  It has full analog mixer operation if the computer crashes or with external power supply.

Another nice feature is it has split cueing headphones with rotary mix control. The Crossfader has curve control and assign and reverse.  Master & Booth outputs with L/R balance. It has DSP D-Core inside, Studio Quality Audio Engine + Pro Stage Microphone Circuitry.  It has 34 assignable rotary controllers, 4 assignable rotary encoders. 50 MIDI buttons have LED illuminations, including 18 with dual blue/red LEDs.

62 Assignable MIDI buttons and switches.  Dual 2000 point resolution touch sensitive turntable scratch controllers.  Dual MISI Controls on all buttons and switches.  5 assignable linear fader controllers.  Two 10 bit resolutions pitch sliders.  Long life MIDI assignable touch strips and a built in mouse pad.

Features

Midi Controller with 4 USB / Analog selectable MIDILOG™ (Midi & Analog) channels
DSP D-Core Inside: Studio Quality Audio Engine + Pro Stage Microphone Circuitry
2x Mics with Gain, Treble, Mid & Bass Control
Crossfader Curve Adjustment
Assignable Touch Strips
Built-in Mouse Pad
Built-in 4 In/4 Out Soundcard
Bundled with Virtual DJ LE Software
On/Off soft startup and turnoff
Gain/treble/mid/bass EQ on all MIDILOGTM channels
2 phono/line selectable analog channels
Two microphone channels with illuminated on/off switches and gain/treble/mid/bass EQs
On/off cueing on each MIDILOGTM channel
Split cueing headphones with rotary mix control
Illuminated rubber knobs for ease of use in dark environments
Solid 1.6mm thick faceplate for extra durability
Panel mounted rotary knobs
Full analog mixer operation if the computer crashes or with external power supply
Innofader replaceable crossfader compatible (sold separately)
Crossfader curve control
Crossfader assign and reverse
Q-Start crossfader controlled startup for 2 external audio players
User replaceable channel faders
Master and Booth outputs with L/R balance
Balanced Master outputs
12 position stereo master output VU meter

MIDI Features

Built-in mouse pad
Long life MIDI assignable touch strips
Two 10- bit resolution pitch sliders
62 assignable MIDI buttons and switches
50 MIDI buttons have LED illuminations, including 18 with dual blue/red LEDs
4 assignable rotary encoders
34 assignable rotary controllers
5 assignable linear fader controllers
Dual MIDI controls on all buttons and switches
Dual 2000 point resolution touch sensitive turntable scratch controllers

Specifications

Balanced XLR Outputs
24-bit 48 kHz analog audio
16-bit 44.1kHz USB audio
10-bit resolution on all analog fader controls
Distortion (THD) :  < 0.1%
Channel separation : > 60dB
Signal to Noise ratio : > 85dB
Selectable USB modes: 4 in 4 out mode for running software effects on phono/line analog channels or
    2 in 8 out mode for running 4 software channels and master recording
2 msec response on all buttons
4 msec response on all rotary and linear faders
1 msec USB latency
Dimensions (WxDxH): 482 x 325 x 40 mm
Weight: 6 kg
