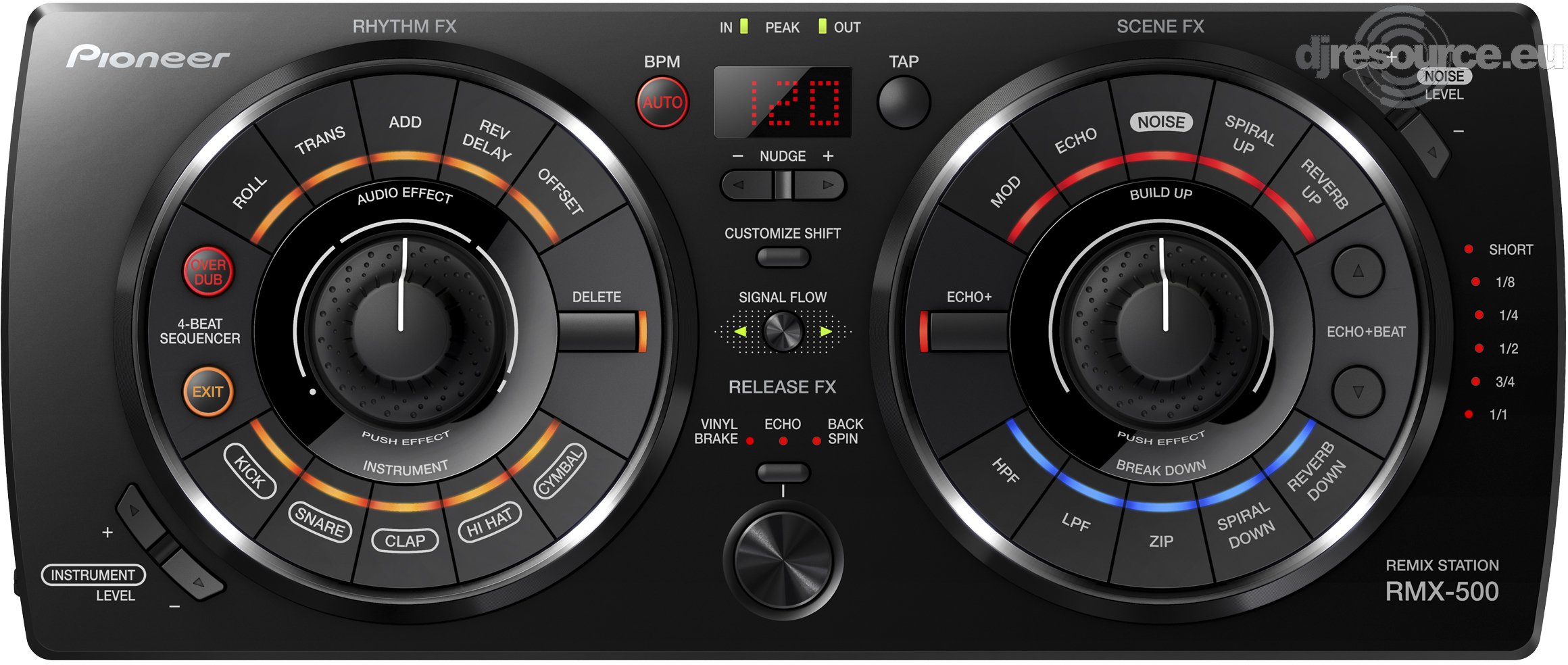

The Pioneer RMX-500 is the lightweight version of the Pioneer RMX-1000.

There are 3 effect sections on the RMX-500: Rhythm FX(BPM synced), Scene FX(Filter-like) and Release FX(endings),

The RMX500 is an external effect unit that can best be connected to the Send/Return of a mixer. It can also be connected to Master output of the mixer, you then connect the output of the RMX to the amplifier, CHECK your levels constantly.

Get instant access to 5 Audio FX, an Overdub sequencer and 5 versatile drum samples, and use the large Pressure Control knob to manipulate the FX depth and other FX parameters. Use Overdub create your own beat sequences, and hit Signal Flow to add Scene FX to the Rhythm FX in play.

Build up and break down tracks by combining 10 types of Scene FX. Use the top section to build with FX like Noise, Echo and Spiral Up or the bottom section to break down, cutting sounds with Crush Echo, Spiral Down or Reverb Down.

Seamlessly exit complex FX combinations with the Release FX using Back Spin, Echo and Vinyl Brake to effortlessly return to the original track.

Features

• DJ Effects Unit
• Pressure Controller Knobs controls multiple parameters
• VST/AU/RTAS plugin included
• 5 Rhythm FX : Roll, Trans, Add, Reverse Delay, Offset
• 5 X-Pad Instruments (6 variations each): Kick, Snare, Clap, Hi Hat, Cymbal
• Rhythm FX 4 beat Sequencer
• Rhythm FX Adjust
• 5 Build Up Scene FX : Modulation, Echo, Noise, Spiral Up, Reverb Up
• 5 Break Down Scene FX : High Pass, Low Pass, Zip(stretch), Spiral Down, Reverb Down
• Break Down Adjust
• 3 Release FX : Vinyl Brake, Echo, Backspin

Specifications

• Inputs: Line(RCA)
• Outputs: Line(RCA), Headphone(Jack)
• USB-B Connection
• Frequency Response: 20Hz - 20kHz
• Sample Rate: 48kHz @ 24bit
• DA/AD Converters: 24bit
• Internal Soundcard: 48kHz @16bit
• Signal to Noise: 96dB
• Distortion(THD): 0.006%
• Headroom: 20dB
• Power: DC 5V
• Dimensions (WxDxH): 306 x 132 x 67mm
• Weight: 1 kg
