Stanton SCS.1M

Submitted by Danceflight794  Flag on 19-08-2011 @ 09:34
Last edited by Lead  Flag on 15-06-2018
Stanton

Model : SCS.1M

Brand : Stanton
Brand website :  www.stantondj.com

Category : Controllers MIDI



Vote :

Nobody votes this as Favourite yet.

 Show Booths

1 times used in 1 DJ Booths

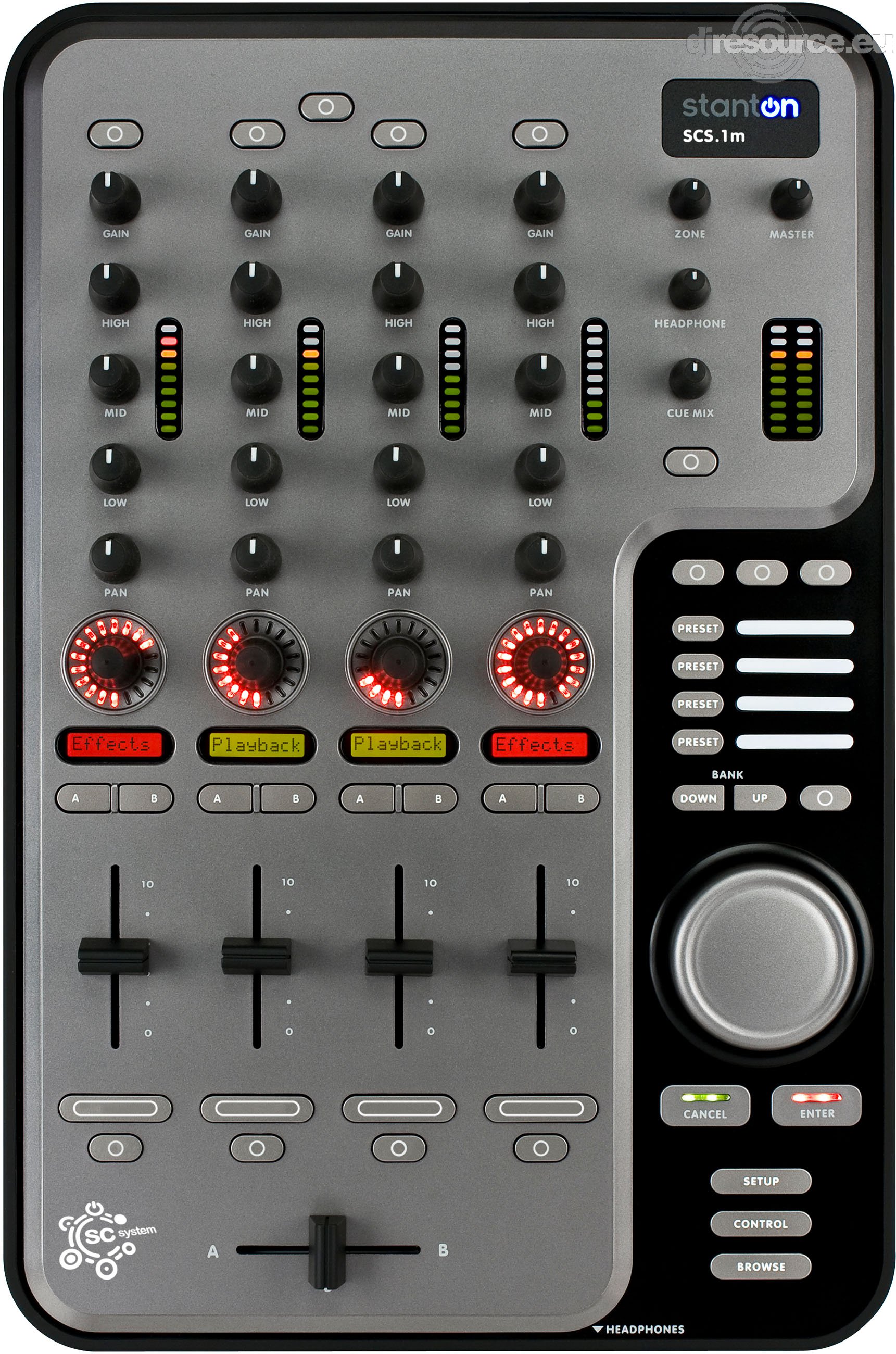

Stanton SCS.1M Controllers MIDI

Although the SCS.1m is in some ways a mixer, it's more appropriately called a mix controller. Designed in an intuitive DJ mixer format that should be instantly familiar to anyone who's ever stepped behind the decks, the SCS.1m features four channel strips with faders, EQ controls, and high-precision metering, as well as a responsive crossfader, and a straightforward Cue / Monitoring section. The surface layout has been carefully designed so that any experienced DJ can simply step up and begin basic mixing within seconds. The difference, of course, is that tweaking an EQ knob or channel fader, for example, is not actually adjusting analog audio - it's controlling the corresponding EQ or level parameter in your DJ software.

FireWire Computer Connection
FirewireThe SCS.1m controls your DJ software and sends/receives audio to Mac or PC via its onboard, studio-quality FireWire connection. FireWire allows a simple, single-cable connection, with all the bandwidth required to handle just about any mixing and controlling task you're likely to need. It also ensures ultra-low latency (delay) of only 1.5ms and high sampling rates (sound quality) of up to 24 bit / 96 kHz. This translates into lightning-fast responsiveness and sound quality that's far beyond competing mix control products.

Rotary Controls (aka Super Knobs)
Thumb Mixer EncoderBeyond basic mixing and control, the SCS.1m makes a radical departure from traditional mixers via four rotary encoders (virtual knobs) with LED rings and corresponding LCD “scribble strips.” These fully assignable encoders can be mapped directly into functions in the DJ software while providing visual feedback of knob position, even in low-light settings. Underneath, the LCD scribble strips confirm the software parameter being adjusted by each encoder, without the need to check your laptop. Of course, common assignments for these encoders can be saved as presets for fast recall.

Auxiliary Input for Turntables and CD Players
Although designed primarily as a software control surface, the SC System® provides DJs with the ability to connect a “real” turntable or CD player into their Macs or PCs via a switchable Aux input. This input is useful for mixing “real world” sources along with your software, and for sampling or archiving vinyl and other audio into your computer.

Superior Build Quality
Unlike other DJ control surfaces, the SCS.1m Mix Controller and SCS.1d Deck offer truly professional, “no-compromise” build quality. Every knob, fader, LED and LCD is of utmost quality, and even the chassis is designed for years of real-world use in demanding live and studio environments.

A DJ setup that is build from Stanton SCS.1d combined with the Stanton SCS.1M Mixer is also calles SC System 1.

Features

24 Potentiometers (MIDI CC)
4 Virtual-pots with 18 segment LED rings (MIDI CC or Incremental CC)
4 45mm Linefaders (MIDI CC)
1 45mm Crossfader (MIDI CC)
1 Rotary encoder (MIDI CC or Incremental CC)
4 Multicolor 8 character alphanumeric LCDs with contrast control (MIDI SysEX controllable)
6 9-segment LED meters. One for each channel, one L&R pair for master (controllable via MIDI)
37 Momentary backlit pushbuttons (MIDI Note On)

Specifications

Frequency Response : 20Hz - 20kHz ± 0.2dB
Distrotion (THD+N) (at 1kHz) : 0.013%
Signal to Noise Ratio (A-weighted) : 105.1dB
Sampling Rates 44.1kHz, 48kHz, 96kHz
Audio Format 16-bit, 24-bit
Latency (roundtrip) Inputs  (2) : 1 Phono/Line (RCA), Mic (1/4'')
Outputs (2) : 1 Master (1/4'', RCA) , Headphone
Power Supply : 12V DC / 3.0 A
Dimensions (WxDxH) : 273 x 465 x 76 mm
Weight : 2.71 kg
