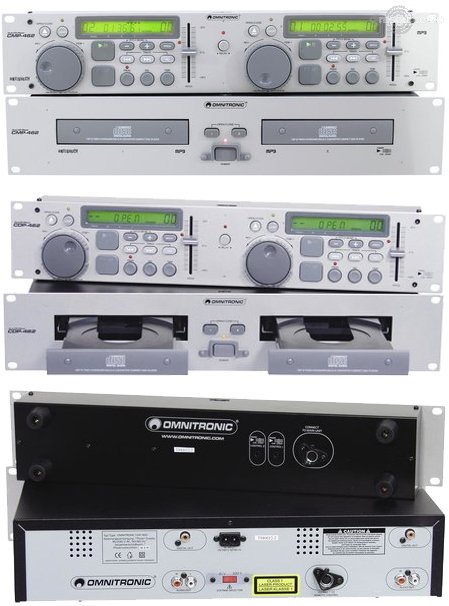

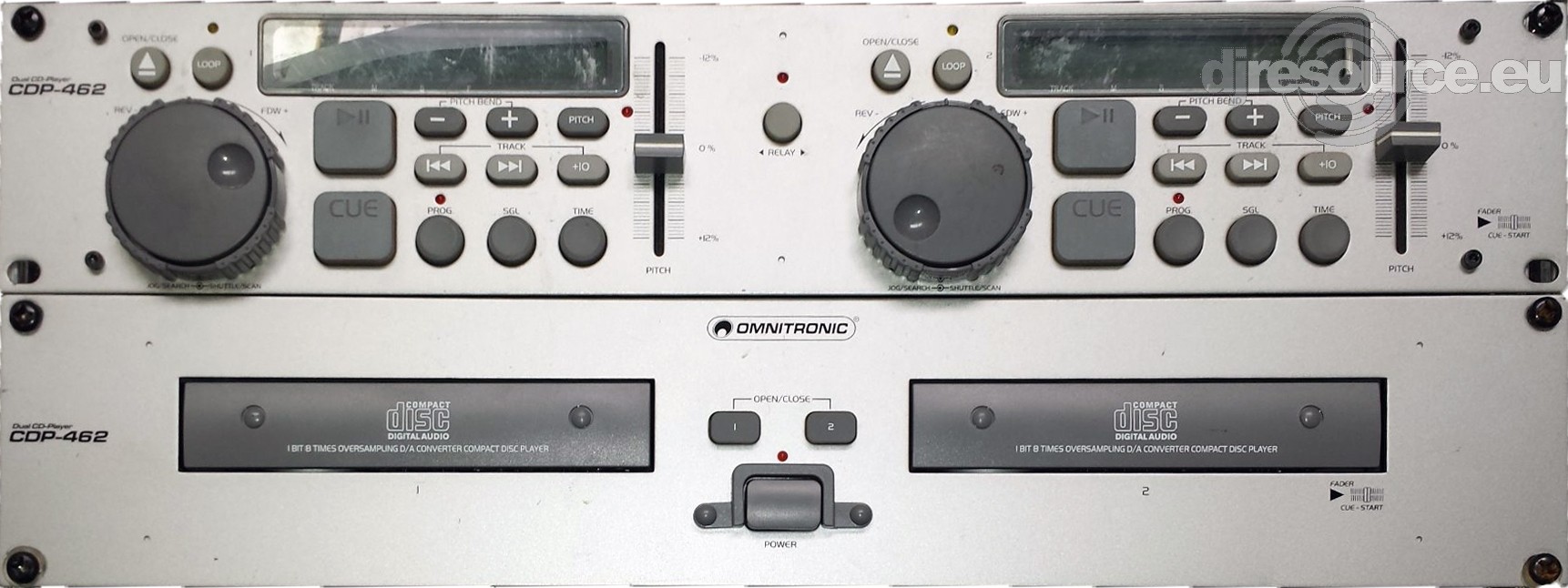

Omnitronic CDP-462

Features

Background-illuminated Play button and Cue button
All functions located in 2 well-structured operating fields
Comfortable track selection via Skip buttons and +10 button
Ergonomic LCD of all operation modes
Display switchable from track remain time to track playback time
Visual warning from 15 seconds before track end
Pitch adjustment via pitchfader is displayed
Pitch Bend buttons for synchronizing the bass beat of 2 signal sources
Pitch adjustment of ±12 % via pitchfader
Sequence playback via Loop button possible
Up to 20 tracks can be programmed
Single mode for playing one track only
Open/Close button locked in playback mode
Large Play/Pause button and Cue button
Auto Cue function: the player automatically jumps to where the music starts
Back Cue function: by pressing the Cue button, the player returns to the track start or Cue point
Jog/Shuttle wheel for quick track selection and framewise search (1/75 sec)
With Faderstart function for controlling the CD player from the mixer
Relay button for switching playback automatically to the other player after every track
LED display of all important functions
Digital ouput
19'' Rack installation

Specifications

Type : Dual Compact Disc Player
Available disc : Standard CDs (8 and 12 cm)
Quantisation : D/A converter: 1 bit
Sampler frequency : 44.1 kHz
Program memory : Up to 20 songs
Frame accuracy : 1/75 sec
Pitch adjustment : ±12 %
Display : Remaining track time and track playback time
Distortion :
S/N ratio : >85 dB
Channel Seperation : > 80 dB
Frequency Range : 20-20kHz, ±1 dB
Audio output (RCA)
Digital ouput (RCA)
Dimensions:    482 x 88 x 250 mm (CD player)
                            482 x 88 x 60 mm (control unit)
Weight:    5 kg (CD player)
                  1.7 kg (control unit)
Power supply : 115/230 V AC, 50/60 Hz
Power consumption : 25 W
