American Audio

Model : PXI 15P

Brand : American Audio
Brand website :

Category : Speakers (active)

This product has been discontinued

Vote :

Nobody votes this as Favourite yet.

Equipment not yet in use by any of our members

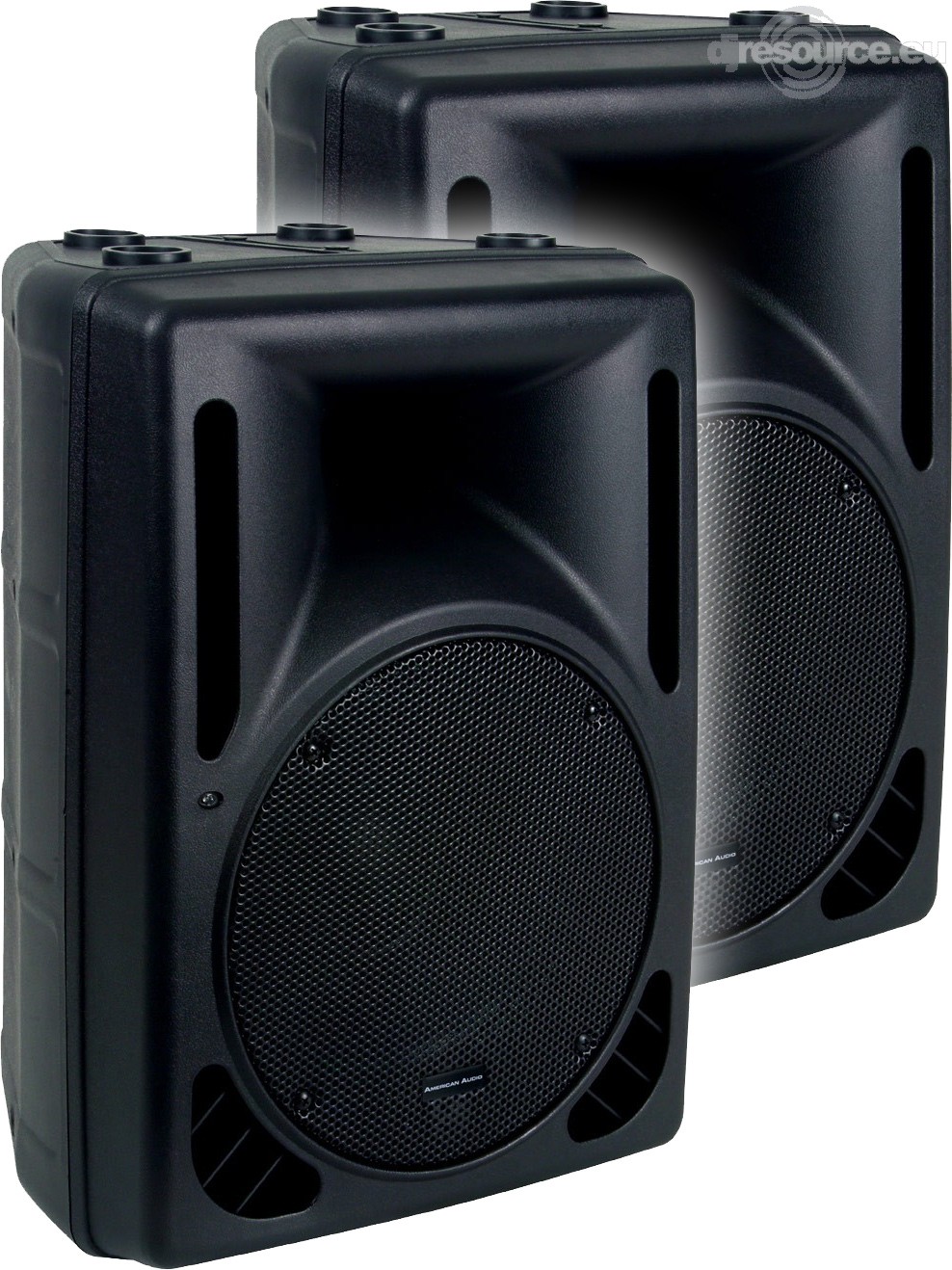

American Audio PXI 15P Speakers (active)

The most powerful of the PXI series the PXI-15P offers a 15'' woofer and a high frequency horn to provide the full spectrum of sound. The 400-watt bi-amplifier system features a 15' flat-wound cast frame woofer with a big-daddy 80oz. magnet and a 1' compression driver.

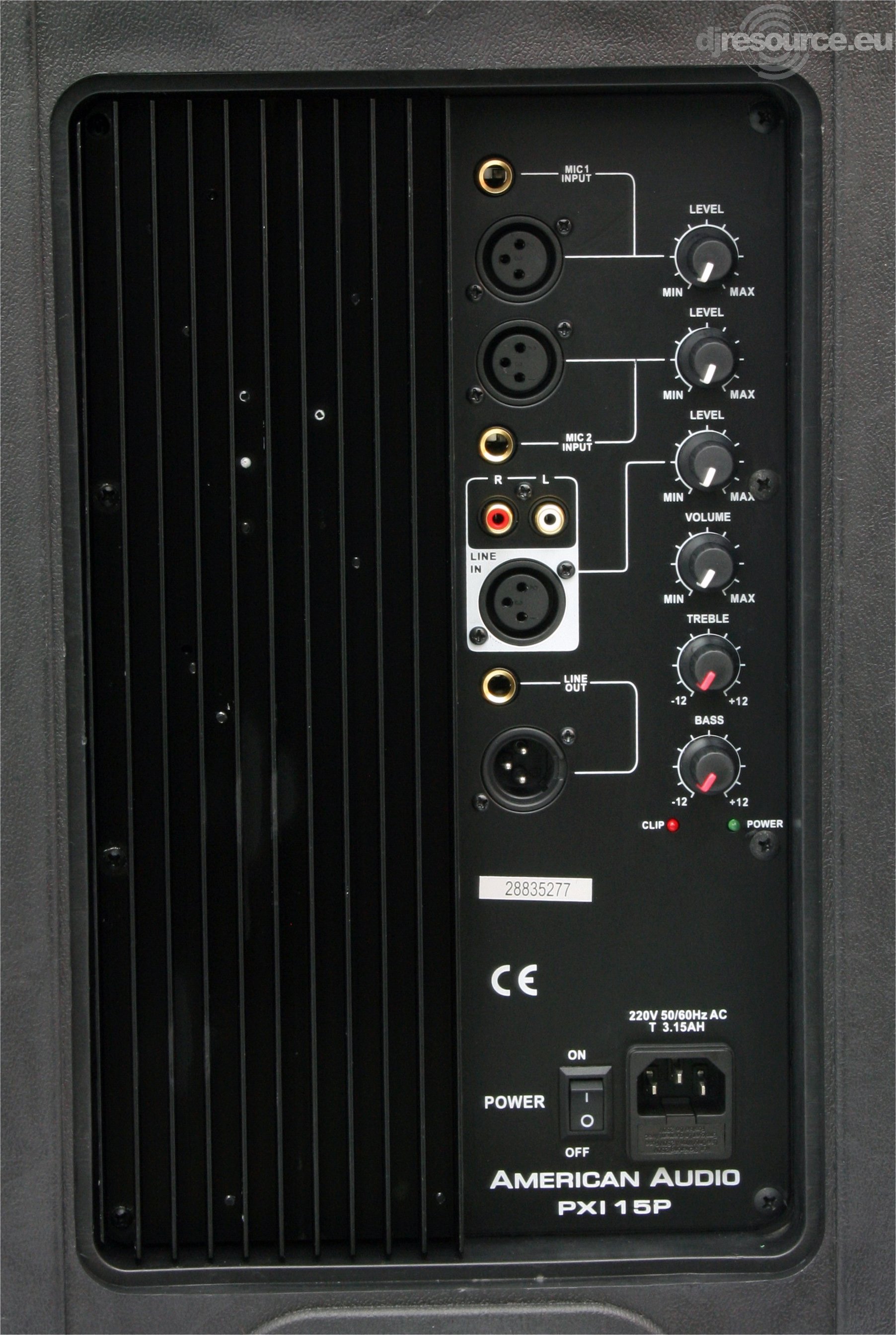

The built-in power amp provides power and the cabinet even has two XLR and 1/4' microphone inputs with individual volume controls. The onboard mini-mixer also has treble, bass and master output controls, as well as RCA inputs.


High-Powered 15-inch, 2-way speaker
Electronic crossover
ABS nylon fiber cabinet with handle
Treble, bass and volume output control
Trapezoidal design
Flyable & stand mountable
flange for 35mm speaker stands
flyingpoints M8
Blue LED “On Indicator” on front of unit
Fuse: 3,15 A Slow


Built-in 400w high-powered bi-amplifier system
15'' Flat wound cast frame woofer with 80oz magnet
1'' compression driver
XLR & RCA line inputs
Two microphone inputs (XLR & 1/4” stereo) with separate microphone volume control
Sensitivity: 97.4 ± 2dB/m/w
Frequency response: 40-17KHz (-10dB )
Dimensions (WxDxH): 360 x 420 x 655 mm
Weight : 25.5 kg
