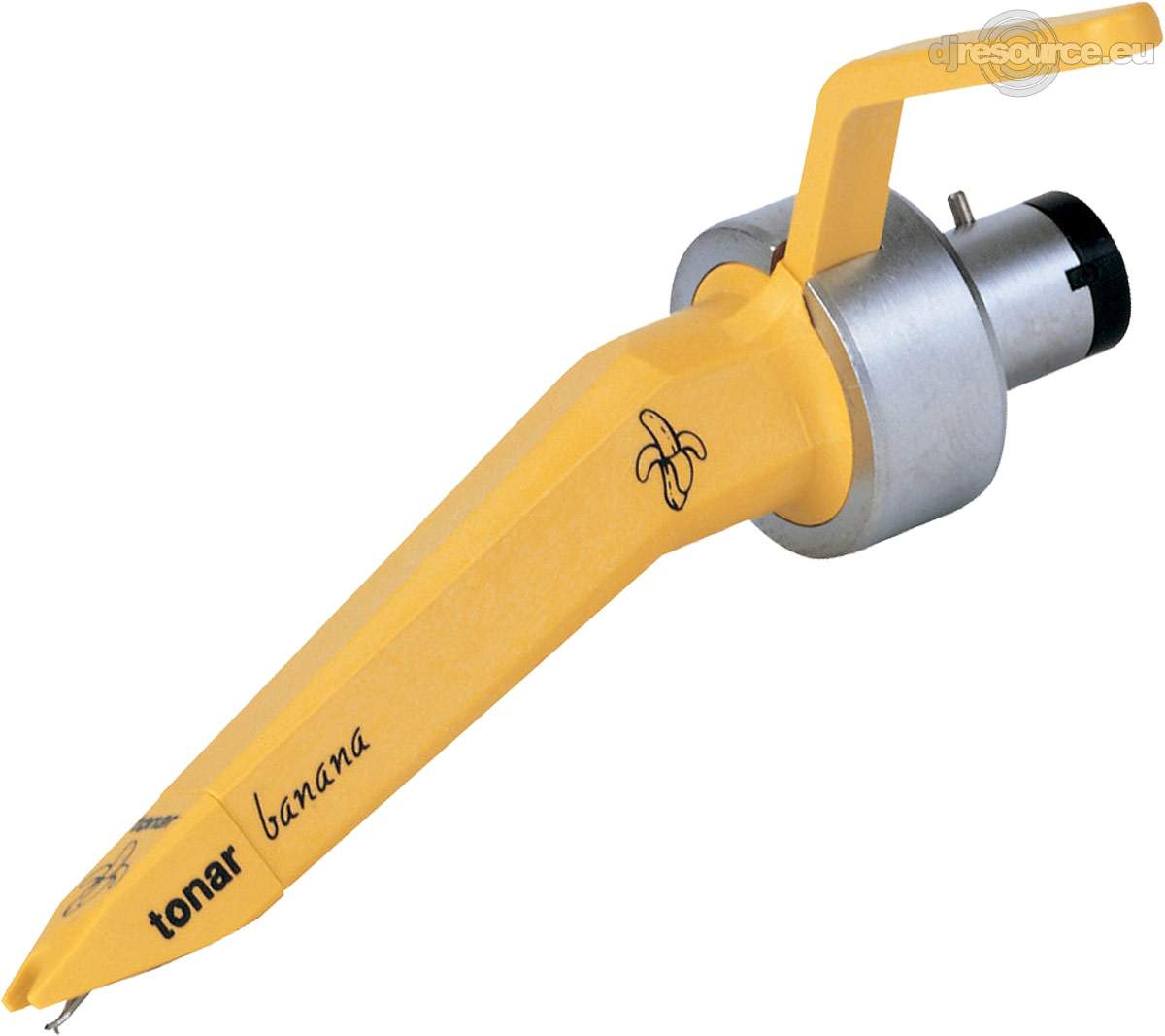

Ortofon TONAR BANANA Stylus & Cartridge

Ortofon

Model : TONAR BANANA

Brand : Ortofon
Brand website :  www.ortofon.com

Category : Stylus & Cartridge



Vote :

1 votes for Favourite Stylus & Cartridge






Product Information


Surely one of the best DJ systems... The original TONAR BANANA.
Exactly identical specifications as the Ortofon Concorde.

Specifications

feature Cartridge weight 18,0 grams
feature Type of stylus 0,7 mil spherical diam.
feature Frequency response 20-20.000Hz.
feature Output voltage 1000 Hz/5cm/sec > 5 mV
feature Channel seperation at 1000 Hz >20 dB
feature Channel balance at 1000 Hz
feature Dynamic compliance horizontal 8 micrometer/mN
feature Dynamic compliance vertical 8 micrometer/mN
feature Recommended tracking force 30-50 mN (3-5 grams)
feature Optimum tracking force 40 mN (4 grams)
feature Tracking ability at 315 Hz (lateral) 70 micrometer
feature Vertical tracking angle 20°
feature FIM distortion 1,8%
feature DC resistance 600 Ohm
feature Recommended load resistance 47 K. Ohm
feature Recommended load capacitance 400 pF
feature Cartridge mounting  SME only
