Eso PLUG

Submitted by Lead  Flag on 15-03-2009 @ 01:57 Images: Popeye
Eso

Model : PLUG

Brand : Eso

Category : Mixer

Available :  1998 - Today ?

This product has been discontinued



Vote :   1 member likes this

1 votes for Favourite Mixer

Equipment not yet in use by any of our members

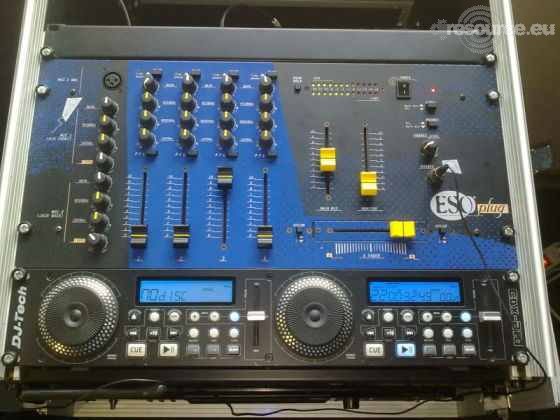

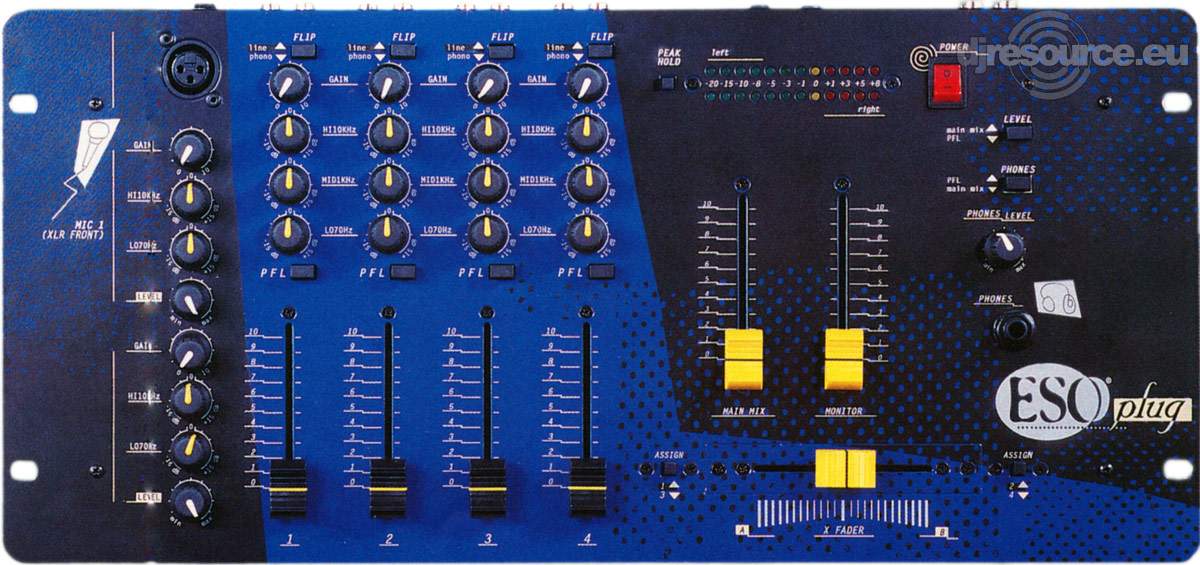

Eso PLUG Mixer

Features

feature 4 Channel Stereo Audio Mixer
feature Inputs: 4 turntables, 4 stereo lines
feature 2 Microphone
feature EQ Mic: ± 15db @ 70Hz(shelf) and 10kHz (shelf)
feature Lever switch to select phono/line inputs from front panel
feature Rotary frequency killers on all 3 input channels.
feature All channels have Pre Fade Listen to 'preview' audio
feature Gain adjust per channel
feature Balanced Mic Input with ¼ inch
feature Professional Grade faders and rotary pots
feature Adjustable gain on each stereo input channel
feature Crossfader assignable channels 1/3 or 2/4
feature Record Output
feature Outboard Power Supply
feature Equalizer
- Low : +9 / -24 dB at 70Hz(shelf)
- Mid : +9 / -24 dB at 900Hz (peak/dip)
- High : +9 / -24 dB at 10kHz (shelf)

Specifications

feature Frequency Response: 20-20kHz
feature Distortion (TDH): <0.01%
feature Signal to Noise Ration: >90dB
feature 19'' Rack mountable
feature Dimensions (WxDxH): 483 x 220 x 80 mm
feature Weight: 3.5kg




What do you think about Eso PLUG ??

Vote :   1 member likes this
DJResource / Eso © 2019
There are 2 Comments
  Flag djtik wrote on 02-03-2009 @ 12:07
Hi...I use this type but now power adaptor it's missing i dont know where to buy i need some help. I just want to know about power requirement
(volt, amp)
thanks
djtik
  Flag Lead wrote on 12-03-2009 @ 20:50
The power requirements should be on the mixer near the socket where you should connect te adapter.
You could use any adapter that supplies that V/A conbination...

[edit] Somebody posted and image of the power supply. Ill post it here so it's good archived for future use Winking my eye

Eso Plug Power Supply Information Specification
