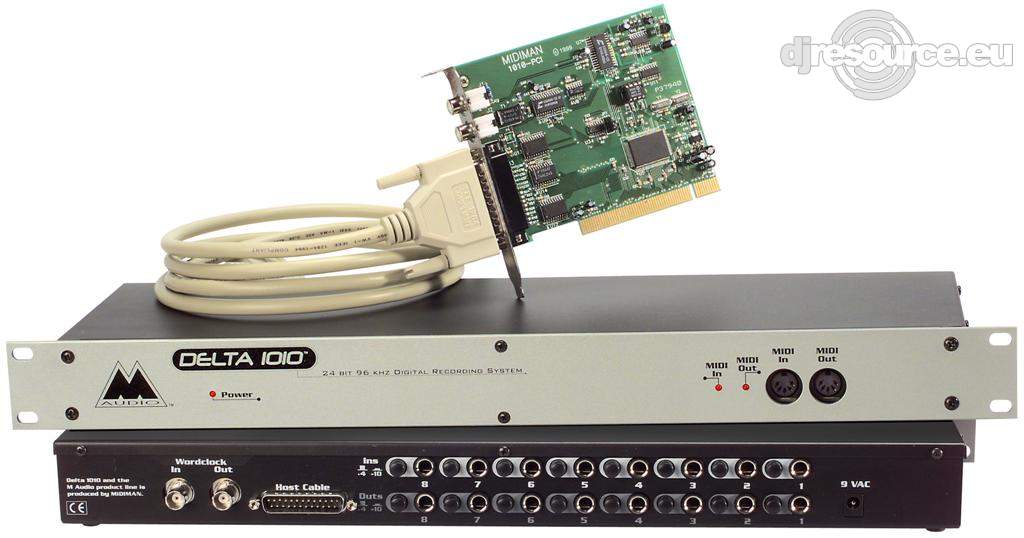

10 x 10 24-bit/96kHz full-duplex recording interface
8 x 8 analog I/O on balanced/unbalanced 1/4” TRS
S/PDIF digital I/O (coaxial) with 2-channel PCM
SCMS serial copy management control
digital I/O supports surround-encoded AC-3 and DTS pass-through
up to 24-bit/96kHz fidelity
1 x 1 MIDI I/O
analog outs can directly drive up to 7.1 surround
+4dBu/-10dBV operation individually switched on rack-mount unit
word clock I/O for sample-accurate device synchronization
software-controlled 36-bit internal DSP digital mixing/routing
Apple G5 compatible - Incompatible exceptions
includes Ableton Live Lite music production software, so you can make music right away
frequency response: 20Hz-22kHz, +/-0.3dB
dynamic range (A-weighted): 109dB (A/D), 117dB (D/A)
signal-to-noise ratio (A-weighted): -109 dB (A/D), -117dB (D/A)
THD +N: 0.00072% (A/D), 0.00200% (D/A)
size/weight (breakout box): 1-3/4” x 19” x 6-1/8”; 4.9 lbs.
