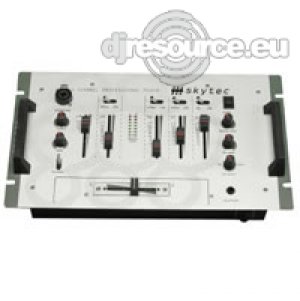

Stereo disco mixer featuring 5 input channels, 4 of which are switchable: 3 x for PHONO/CD and 1 x for LINE/MICROPHONE. 2-band tone control on every channel. A special microphone input channel with COMBO connector and automatic TALKOVER. Crossfader, MASTER output control with dual VU-meter. 6.3mm jack connector for stereo headphones with volume control and source selector switch.
Connections via RCA sockets.
4 stereo channels with 2 band eq
PFL with cue level control
LED VU meter
Inputs 3 x phono, 4 x line, 2 x mic
DJ Microphone with talkover
Power supply 230Vac, 50Hz
Output:Master 0dB @ 10k Ohms
Output:Record -10dBu @ 10k Ohms
Equalizer:Treble ±10dB @ 10kHz
Equalizer:Bass ±10dB @ 100Hz
Frequency response 20Hz - 20kHz (±3dB)
Signal to noise ratio:Mic -56dB
Signal to noise ratio:Line -75dB
Signal to noise ratio:Phono -55dB
Headphone output 1.5V, 16 Ohms
Dimensions 240 x 380 x 100mm
