Pioneer SE-M10R   DJ Headphones English
This content is © 2012 The DJResource...
Submitted by Lead Flag on 24-04-2005 @ 12:04 (14.309 views)

Pioneer DJ Product
titleb titleb
When looking at the picture above you might sense some recognition to a model from a few years ago Pioneer SE-450. Although the SEM10R is a complete different model with a greatly improved sound, I bet some hearts pouched a few times extra.

The SE-M10R is best compared to the Pioneer HDJ-1000. The SEM10R is not even designed by the ProDJ department of Pioneer. The engineers from the Home Audio department get all the credits.

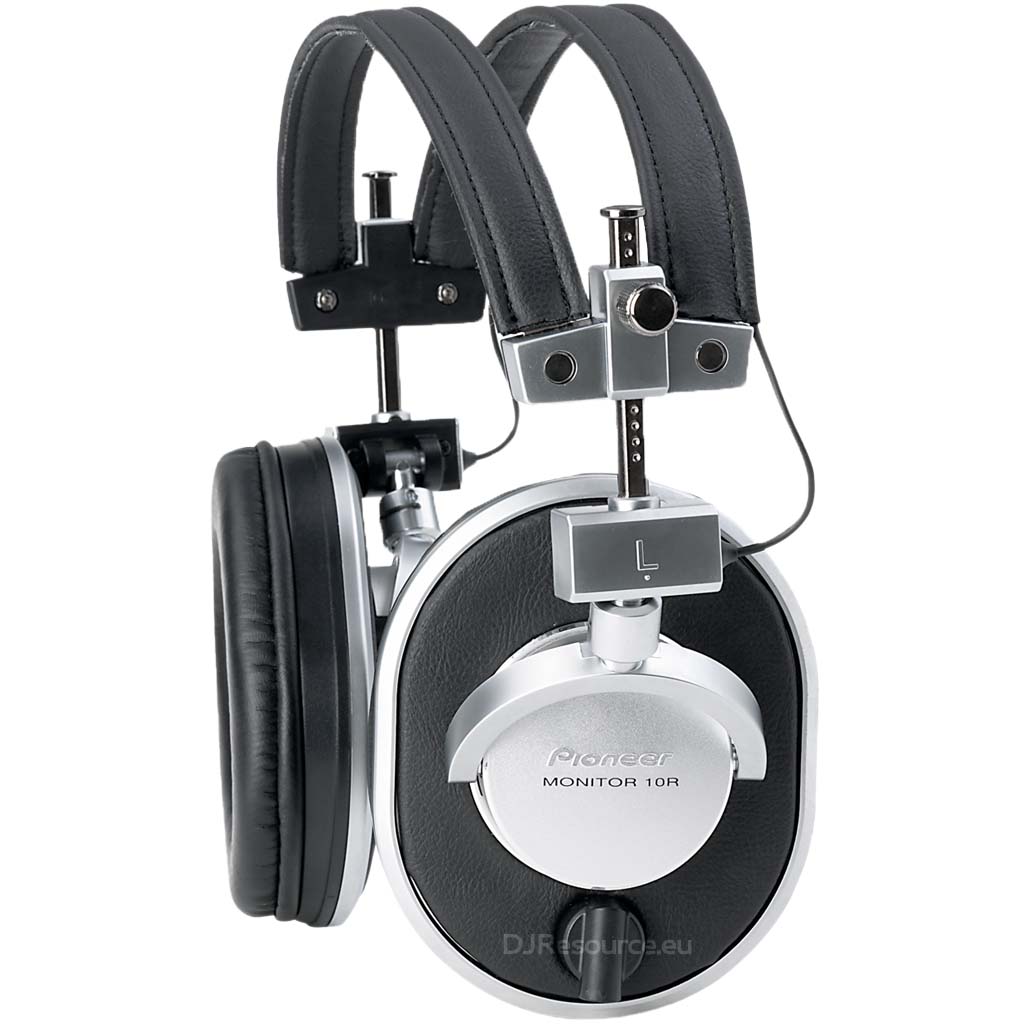

Pioneer SE-M10R Product Image



Specifications
Product Type
50 mm Tightly closed dynamic headphones
Frequency Range
5 ~ 28.000 Hz
Impedance
35 Ohm
Maximum Input
3.000 mW
Sensitivity
106 dB/mW
Connection Cord
2.5m long single coiled cable (7m straight)
Weight
275 g (excluding cord)
Plug
3.5 mm 3P plug (gold-plated), 6.3 adapter



Here is a comparison chart from the differences between the HDJ-1000 and the SEM-10R


Type :
SE-M10R HDJ-1000 SE-DJ5000
cushion falls over your ears on your ears on your ears
Frequency Range 5 ~ 28.000 Hz 5 ~ 30.000 Hz 5 ~ 28.000 Hz
Impedance 35 Ohm 40 Ohm 55 Ohm
Maximum Input 3.000 mW 3.500 mW 3.000 mW
Output Sound Level 106 dB/mW 107 dB/mW 105 dB/mW
Weight 275g (excl. cord) 270g (excl. cord) 270g (incl cord)
Connection Cord 2.5m (7m straight) 1.2m (3m straight)
Usage Studio / prelistening DJ / Performance DJ / Performance


The differences
If you compare both headphones you notice that there are only slight differences. The SE-M10R has a lower power, but the lower impedance compensates well enough for a high output level (106 dB). Sound is a difference but it's not the only one.

The biggest difference between both headphones is that the Speaker Units from the HDJ are put on your ears. While the Speaker Units of the SEM10R are so large that you put them over your ears. Especially when you have to use the headphones for a very long time you definitely notice the difference.

A headphone on your ears give a certain pressure that might annoy you when you have to play a long set. This is more a personal choice than that you can say that one type of model is better than the other.



SE-M10R: Large Diameter Speaker Unit
The biggest difference with the HDJ-1000 is the Pioneer SE-M10R has much larger Speaker Units. These are about the same size as the legendary SE-450. The sound is much different though. The SE-M10R sound warm and has a very accurate mid. Sound is always hard to describe, listening to it for real is the only way to find out of this is what you like.


Pioneer SE-M10R Drawing of foldingFolding the right way
The Pioneer SM-M10R was designed with the same type of joints as you might be used to when you know the SE-DJ5000 and/or the HDJ-1000.

You first press the cushion to each other, than press them in and then inwards... click !

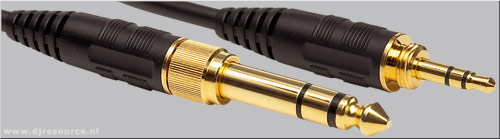

Adapter from 3.5 to 6.2mm included, it's screwed to it's place



Pioneer SE-M10R connect the cordLong Cable
When stretched out all the way the cable has a length of about 7 meters, normally the length is about 2.5 meters. This is extremely useful when your cd/record case cannot be placed near the mixer.


Easy to Replace
When there might be something wrong with the cable you can simply buy a new one and replace it yourself. It's as easy as turning the plug in the Speaker Unit and watch carefully to the markers.



Pioneer SE-M10R adjust the height with a screw Adjusting the height
It's best to have both Speaker Unit at the same height, you can simply count to dots to set the height on both sides the same.

The mechanism is locked with a metal screw to make sure that the height will never change unless you want it.
