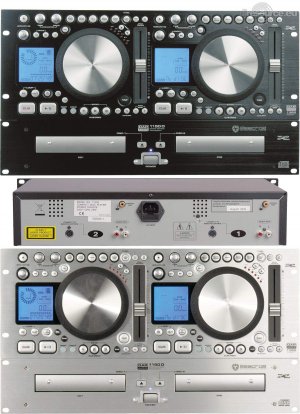

The Dap Audio 1150d is available in Black (1150d-b) en in Silver (1150d-s).

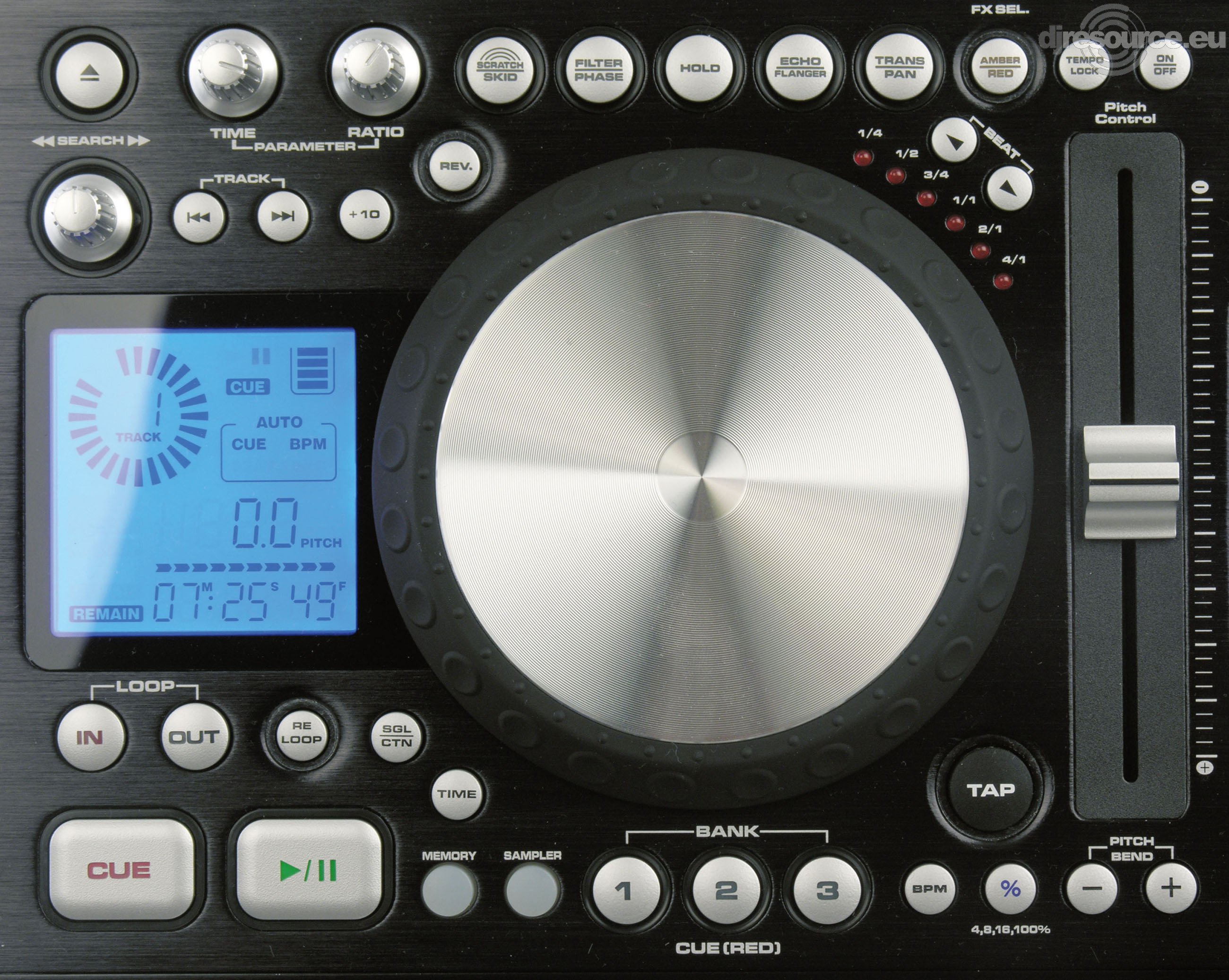

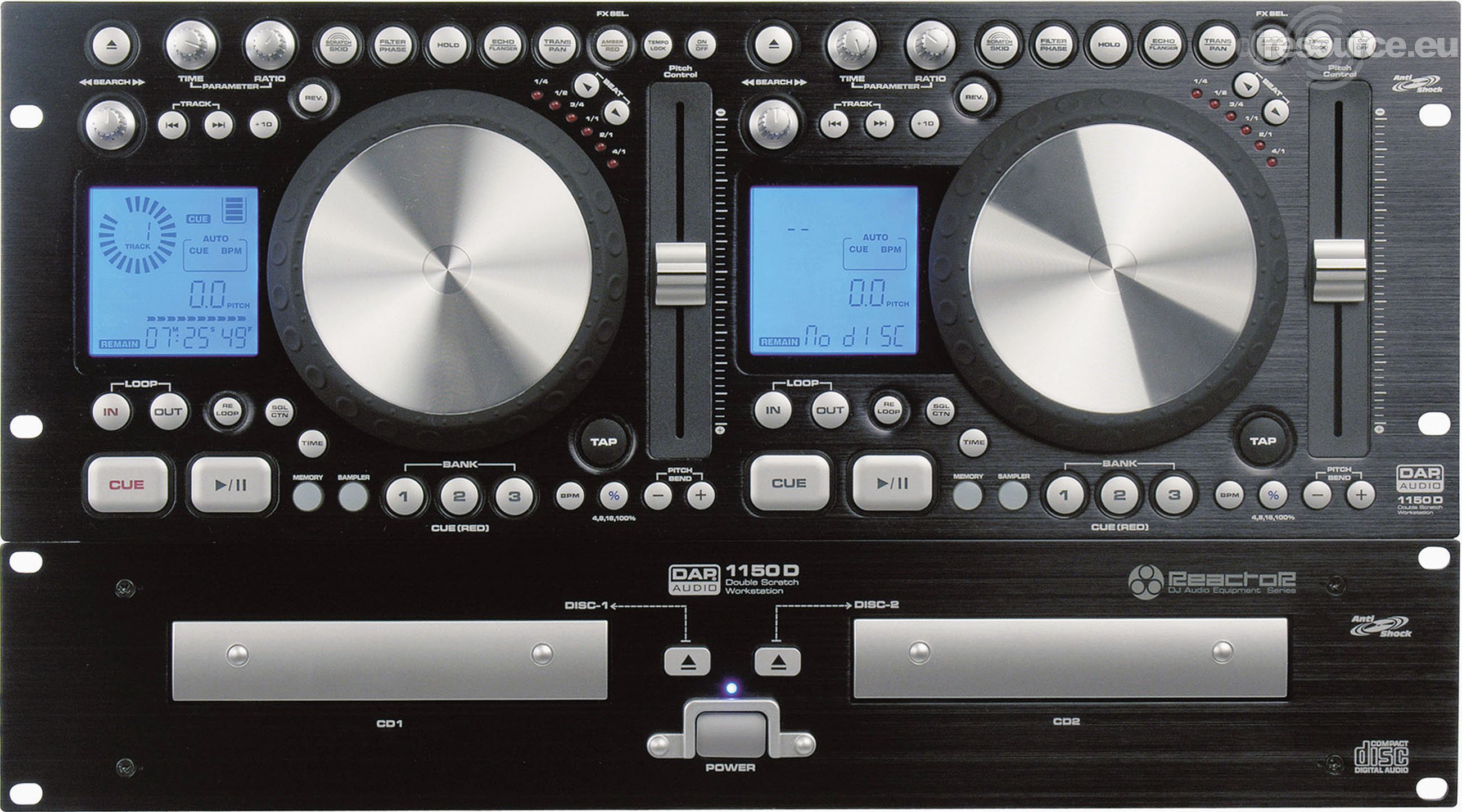

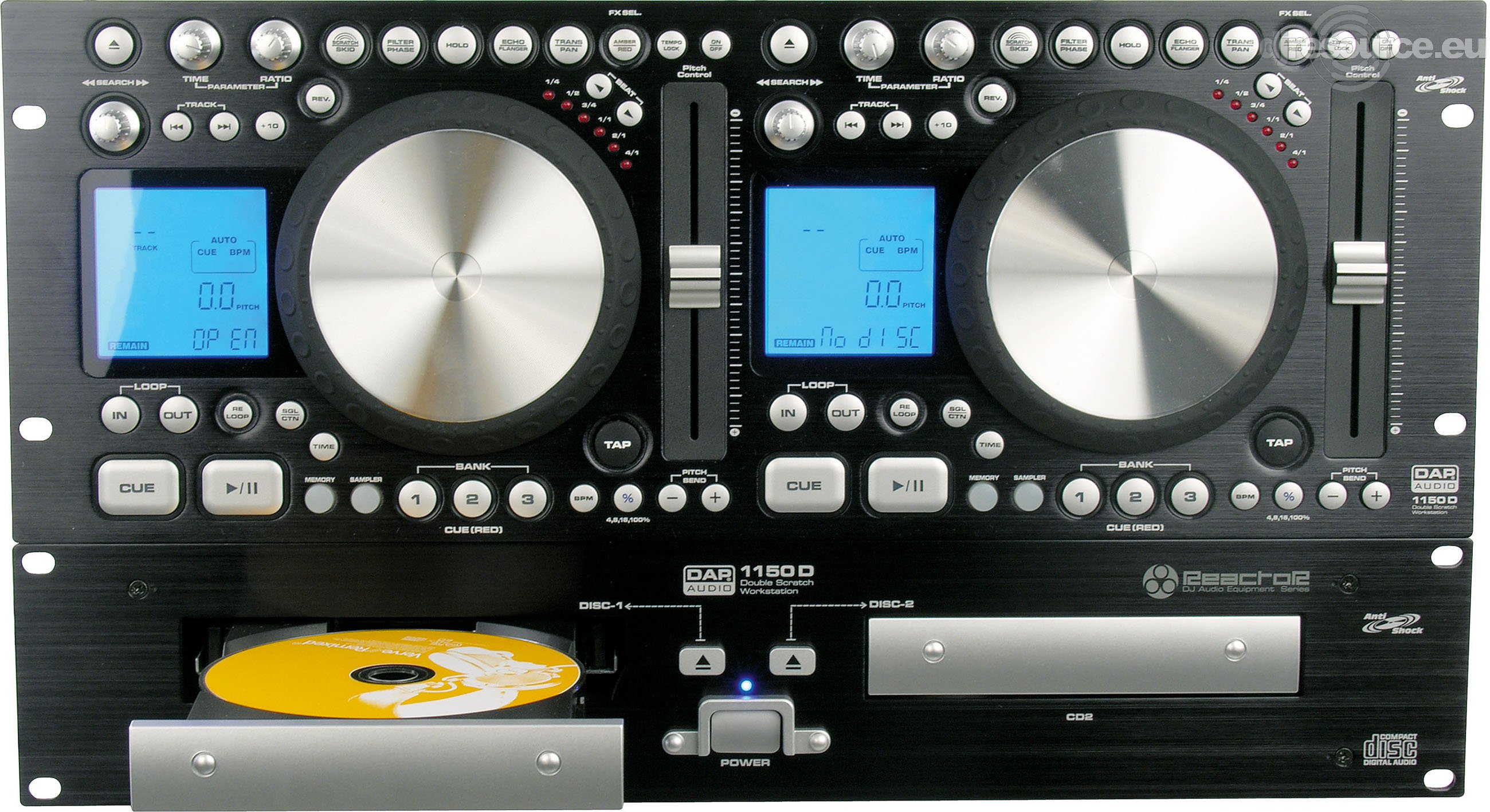

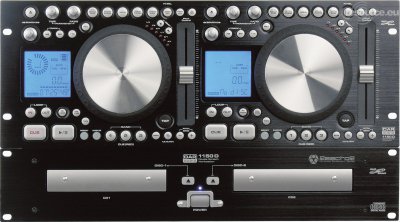

The 11050D is a double-Scratch Workstation (4HE) with Anti-Shock, 2 touch sensitive scratch-wheels made of aluminium. Cue Scratch-function: when touching the scratch-wheel back to cue-point. Cue Sequence Scratch-function: when touching the scratch-wheel back to the occupied cue-point. Realtime-scratch-function (no delay and time limit). Vinyl Cue-function for searching Cue-points (disables the frame-function of the CD-player). Auto Beatcounter or Tap-button.

DSP-sound-effects (brake, reverse, motor off, flanger, echo and auto pan with adjustable parameters).
Time and Ratio-parameters individually adjustable. All sound-effects can be combined with one another (scratch, echo and flanger or reverse and echo and then brake). Beat Sync-function: all effects can be adjusted in accordance with the track speed. All adjusted effect-parameters can be memorized and recalled from up to 500 CDs.

Sampler-unit (3 x 7 seconds sampler-time), adjustable sample-pitch and sample-volume. All adjusted sample-parameters can be memorized and recalled up to 500 CDs. Three cue-point hotkeys, which can be recalled from up to 500 CDs. Seamless loop-function and reloop-function. Faderstart-function.

Speed-control (adjustable to +/- 4 %, +/- 8 %, +/- 16 % or +/- 100 %). Main Tempo-function and Track-buttons for selecting the track. Additional +10-button, Digital output via RCA (44.1 kHz S/PDIF). Search-encoder, Relay-function via Faderstart-socket. The Anti-Shock buffer (2 x 10 seconds) avoids jumping of the CD.

Exquisit design with illuminated CD-tray, anodized aluminium-frontpanel and comfortable operation due to well-structured frontpanel-design, back-lit buttons, and large display. Pitchfader (Pitch-adjustment is displayed in % or BPM). Faderstart-function (Start/stop control at the mixing panel). Track-buttons for selecting the track. Display switchable: Remain (track remain), Total Remain (total remain time), Elapsed (track playback time). 19'-dimensions: Driver unit 2 u, Controller 4 u.


Specification
Dual Compact Disc Player
Available disc: Standard CDs 8 and 12 cm
D/A-converter: 1 Bit
Sampler frequency: 44.1 kHz
Frame-accuracy: 1/75 sec
Pitch adjustment: +/- 4 %, +/- 8 %, +/- 16 %, 100 %
Display: Remaining track time and track playback time
Distortion: 0.01 %, 1 KHz
S/N-ratio: 86 dB
Channel separation: 80 dB
Frequency range: 20 - 20,000 Hz, +/- 1 dB

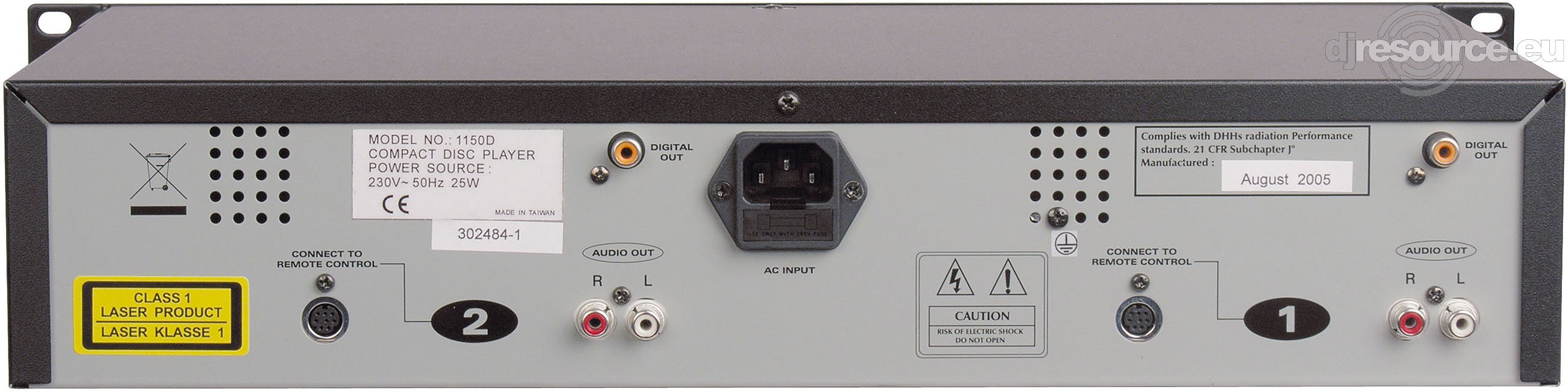

Audio output: unbalanced via RCA
Output level: 1V rms
Digital output: unbalanced via RCA, 44.1 kHz stable
Power supply: 115/230 V AC, 50/60 Hz ~
Power consumption: 25 W
Dimensions Main unit :  482 x 88.8 x 262 mm
Dimensions Control unit : 482 x 177 x 65 mm
Weight: Main unit : 5.5 kg
Weight Control unit : 3 kg
