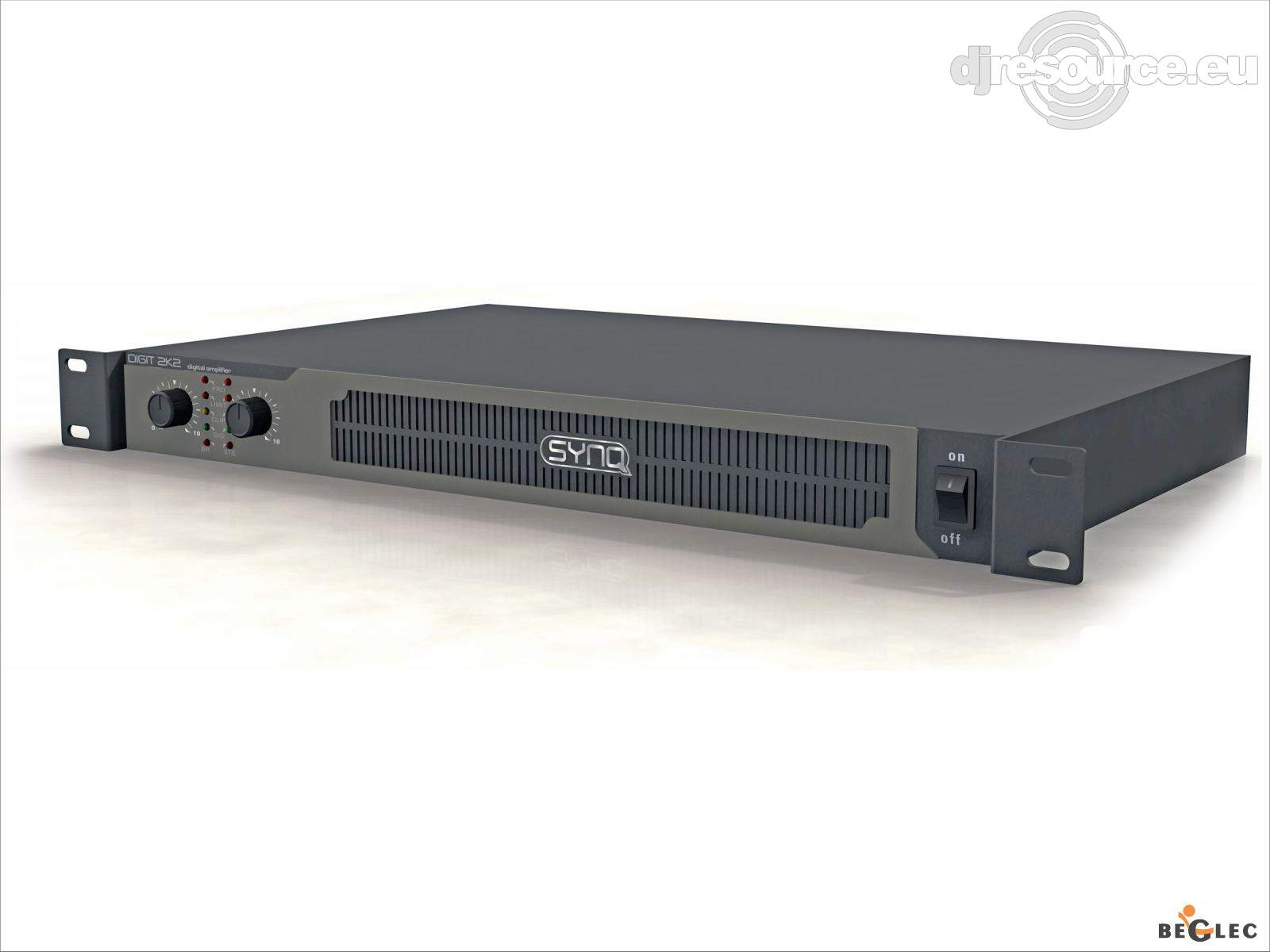

Digit 2K2 :: Product Description
A real breakthrough in professional amplifier technology: Synq introduces a new range of CLASS-D AMPLIFIERS with exceptional power and competitive pricing!
The extremely high efficiency, reduced power waste and very low heat dissipation are the main advantages of these PWM-amplifiers!
Incredible space savings for mobile applications: enclosure only 1unit high!
Incredible low weight: only 6,5kg!
Extremely high power output: 2x 1100Wrms @ 4ohms!
Output in bridge mode: 2200Wrms @ 8ohms
All the protections you can think of for professional use:
Signal + current limiters
Short circuit current protection
AC, VHF protection
Very powerful bass response, also perfect for subwoofers!
Switchable 30Hz HPF (high pass filter) eliminates unwanted, power consuming, subsonic frequencies.
3 different working modes: stereo, bridge mode, mono mode (inputs linked)
Balanced in/outputs on XLR + 6.3mm jack
2 Speakon connectors (left and right outputs)
1 separate Speakon output for bridge mode
:: Technical Information
Power – stereo (or mono): 2x 600Wrms @ 8 ohms
Power – stereo (or mono): 2x 1100Wrms @ 4 ohms
Power – bridge: 1x 2200Wrms @ 8 ohms
Frequency response: 5 - 30.000Hz +/-1dB
Input sensitivity: 1000mV
Input impedance: 10k balanced / unbalanced
S/N ration: >100dB
Crosstalk (8ohm/1kHz): 90dB
Damping Factor (8ohm/1kHz): >300
Slew Rate: 30V/uS
Dimensions: 482x301x44mm (19”/1U)
