Our members can ENLARGE this image of Pioneer DJM-2000
 Brand :  Pioneer
 Model :  DJM-2000
 Category :  Mixers
 Available :   2010 - today

 Website :  www.pioneerprodj.eu

My Favourite


Only our members can see Gear details

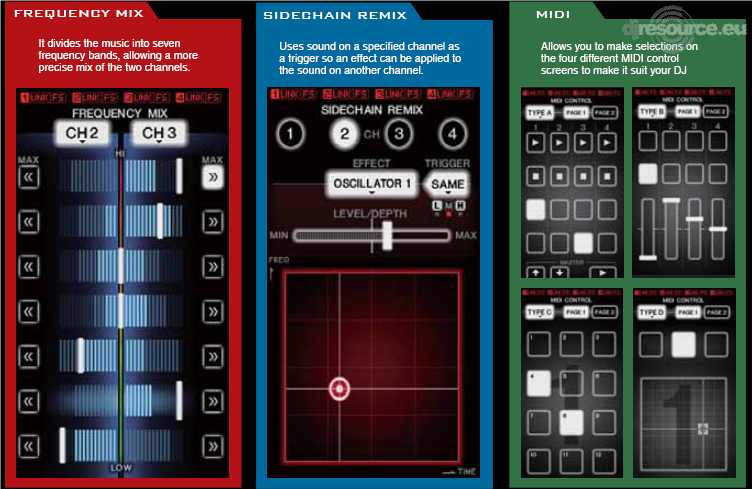

Pioneer's latest addition to their mixers lineup is the DJM-2000, a new digital powerstation that perfectly matches the styling set by the CDJ-2000 and CDJ-900. The DJM-2000 is a 4 channel audio mixer with effects and filters and features a touch screen area like on the SVM-1000. The big difference is that the screen on the DJM-2000 is Multi-Touch. This means that for some effects you can use two fingers to control the effects.

There are a total of 6 individual effect processors which make the total number of possible combination endless. The DJM-2000 is an intuitive layout that feels very natural for DJs that are used to control the DJM-800 or it's predecessors. As there are a number of big international DJs that helped developing the mixer at various stages, the DJM-2000 is the new ultimate club mixer made by Pioneer.


The DJM-2000 approaches mxing in a new way, Pioneers 10 year experience helped developing this top end mixer. This mixer comines the strengths of a true digital mixing console with the effect possibilities of the EFX-1000. Due to the Touch Screen the controls of the effects is much easier than on any external effects processor.

The DJM-2000 is currently the only mixer that offers the ability to connect (with netwerk cables) up to 4 CDJ-2000's (or CDJ-900's) and 2 computers with Rekordbox. There is no more need for a LAN switch to connect more than 2 of the new generation CDJs to eachother. With this link activated on all decks and computers all music libraries are shared and can be approached by all decks.


Built in the DJM-2000 is a powerfull 24 bits soundcard that offers 3 possible configurations, but also features HID output to complement the new CDJs, allowing for a true digital connection to your virtual mixing software of choise.


This DJ Topic will be completed later today : 10-3-2010



Specifications

Sampling Rate
96 kHz
A/D Converter
24 bits
D/A Converter
32 bits
Frequency Response
20Hz ~ 20kHz
Distortion
< 0.004 %
Signal to Noise Ratio line
107 dB
Crosstalk
19 dB
Power Supply
AC 220-240V, 50/60Hz
Power Consumption
40 W
Dimensions
320 x 381 x 108 ( WxDxH )
Net Weight
8.5 kg
Display
5.8 inch LCD

Input Specs & Terminals

Digital
4 x (RCA) / Coaxial
CD/Line
6 x (RCA)
Phono
2 x (RCA)
Mic / Sub Mic
1 x(Combi Phone/XLR)
Faderstart
2 x (mono mini JACK)
Return
2 x mono (Phone Jack 6.3mm)

Output Specs & Terminals

Digital
1 x (RCA) Coaxial @ 48kHz or 96 kHz
Master Out 1
1 x (XLR) +2 dBu / 600 Ohm
Master Out 2
1 x (RCA) +2 dBu / 10k
Booth
1 x (Phone Jack TSR Balanced)
Record
1 x (RCA) -8dBu / 10k
Send
2 x mono (Phone Jack 6.3mm)
Midi Out
1 x (5 pin DIN )
Headphone Monitor Out
1 x (Jack 6.3mm) +8.5 dBu / 32 Ohm
Other Terminals

USB
1 x (USB-B)
Pro DJ Link
6 x (RJ-45)

Channel Equalizers




Low Frequency
-26 ~ +6 dB @ 70Hz (or Isolator)
Mid frequency
-26 ~ +6 dB @ 1kHz (or Isolator)
high Frequency
-26 ~ +6 dB @ 13kHz (or Isolator)

Microphone Equalizers




Low Frequency
-12 ~ +12 dB @ 100Hz
high Frequency
-12 ~ +12 dB @ 10kHz




Read lots more in the full length DJ-Topic : Pioneer DJM-2000
